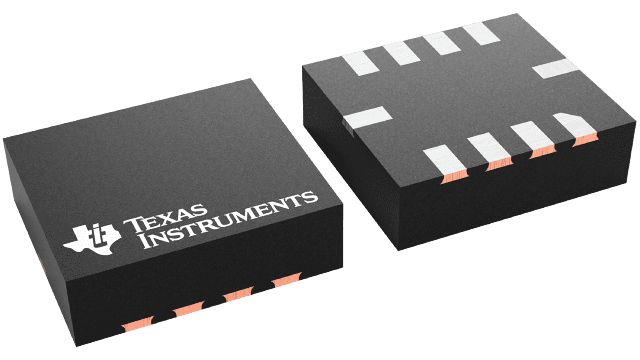

LM3017LEX/NOPB Texas Instruments - Yeehing Electronics
High Efficiency Low-Side Controller with True Shutdown
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 1.384 |
| 100 — 249 | 1.143 |
| 250 — 999 | 0.821 |
| 1,000 + | 0.43 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Switching Controllers |
| RoHS | Y |
| Topology | Boost |
| Number of Outputs | 1 Output |
| Switching Frequency | 600 kHz |
| Input Voltage | 18 V |
| Output Current | 1 A |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Mounting Style | SMD/SMT |
| Package / Case | WQFN-10 |
| Packaging | Reel |
| Operating Temperature Range | - 40 C to + 125 C |
| Series | LM3017 |
| Type | NFET Controller |
| Brand | Texas Instruments |
| Moisture Sensitive | Yes |
| Operating Supply Current | 1 uA |
| Product Type | Switching Controllers |
| Factory Pack Quantity | 4500 |
| Subcategory | PMIC - Power Management ICs |
| Unit Weight | 0.001411 oz |
For more information, please refer to datasheet
Documents
| LM3017LEX/NOPB Datasheet |
More Information
The LM3017 device is a versatile low-side NFET controller incorporating true shutdown and input side current limiting. The LM3017 is designed for simple implementation of boost conversions in Thunderbolt™ Technology. The LM3017 can also be configured for flyback or SEPIC designs. The input voltage range of 5 V to 18 V accommodates a two- or three-cell lithium ion battery or a 12-V rail. The enable pin accepts a single input to drive three different modes of operation: boost, pass-through, or shutdown mode. The LM3017 draws very low current in shutdown mode, typically 40 nA from the input supply.
