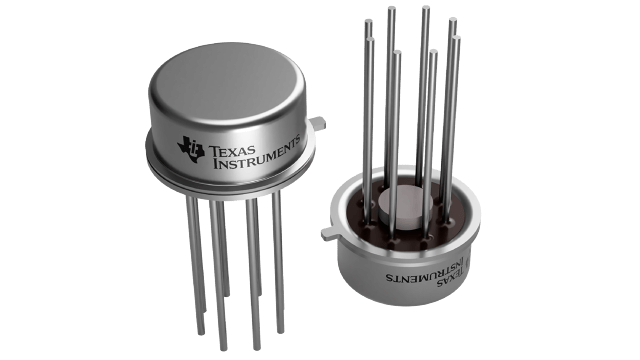

LM301AH/NOPB Texas Instruments - Yeehing Electronics

Military-grade, single, 36-V, 1-MHz operational amplifier

Pricing (USD)

Quantity	Unit Price
1 — 99	13.609
100 — 249	11.094
250 — 999	8.72
1,000 +	5.18

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Operational Amplifiers - Op Amps
RoHS	Y
Mounting Style	Through Hole
Package / Case	TO-99-8
Supply Voltage - Max	36 V
Number of Channels	1 Channel
GBP - Gain Bandwidth Product	1 MHz
SR - Slew Rate	0.5 V/us
CMRR - Common Mode Rejection Ratio	70 dB to 90 dB
Ib - Input Bias Current	250 nA
Vos - Input Offset Voltage	7.5 mV
Supply Voltage - Min	10 V
Operating Supply Current	1.8 mA
Minimum Operating Temperature	0 C
Maximum Operating Temperature	+ 70 C
Shutdown	No Shutdown
Series	LM301A-N-MIL
Packaging	Bulk
Height	4.45 mm
Input Type	Rail-to-Rail
Length	9.14 mm
Product	Operational Amplifiers
Supply Type	Dual
Technology	Bipolar
Width	9.14 mm
Brand	Texas Instruments
Dual Supply Voltage	+/- 9 V, +/- 12 V, +/- 15 V
en - Input Voltage Noise Density	15 nV/sqrt Hz
In - Input Noise Current Density	0.1 pA/sqrt Hz
Maximum Dual Supply Voltage	+/- 18 V
Minimum Dual Supply Voltage	+/- 5 V
Operating Supply Voltage	10 V to 36 V
Pd - Power Dissipation	700 mW
Product Type	Op Amps - Operational Amplifiers
Factory Pack Quantity	500
Subcategory	Amplifier ICs
Voltage Gain dB	104.08 dB

For more information, please refer to datasheet

Documents

LM301AH/NOPB Datasheet

More Information

The LM101A series are general purpose operational amplifiers which feature improved performance over industry standards like the LM709. Advanced processing techniques make possible an order of magnitude reduction in input currents, and a redesign of the biasing circuitry reduces the temperature drift of input current.
