Texas Instruments

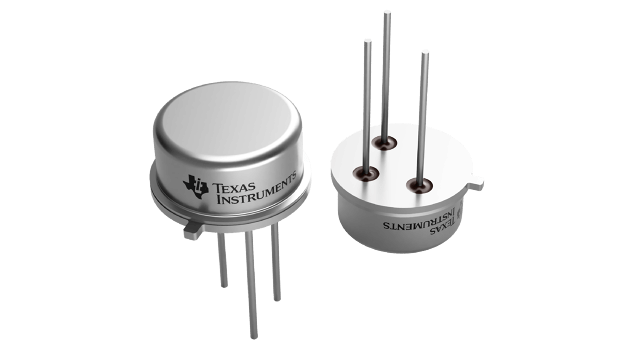

LM309H/NOPB
LM309H/NOPB
Regular price
$6.12 USD
Regular price
Sale price
$6.12 USD
Unit price
per
Couldn't load pickup availability
LM309H/NOPB Texas Instruments - Yeehing Electronics
1A 5V output linear regulator / LDO in hermetic packages
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 16.078 |
| 100 — 249 | 13.107 |
| 250 — 999 | 10.302 |
| 1,000 + | 6.12 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Linear Voltage Regulators |
| RoHS | Y |
| Mounting Style | Through Hole |
| Package / Case | TO-39 |
| Number of Outputs | 1 Output |
| Polarity | Positive |
| Output Voltage | 5.05 V |
| Output Current | 1 A |
| Output Type | Fixed |
| Input Voltage MAX | 35 V |
| Input Voltage MIN | 7.1 V |
| Minimum Operating Temperature | 0 C |
| Maximum Operating Temperature | + 125 C |
| Load Regulation | 50 mV |
| Line Regulation | 50 mV |
| Series | LM309 |
| Packaging | Bulk |
| Operating Temperature Range | 0 C to + 125 C |
| Brand | Texas Instruments |
| PSRR / Ripple Rejection - Typ | 50 dB |
| Product Type | Linear Voltage Regulators |
| Factory Pack Quantity | 500 |
| Subcategory | PMIC - Power Management ICs |
For more information, please refer to datasheet
Documents
| LM309H/NOPB Datasheet |
More Information
The LM109 series are complete 5V regulators fabricated on a single silicon chip. They are designed for local regulation on digital logic cards, eliminating the distribution problems association with single-point regulation. The devices are available in two standard transistor packages. In the solid-kovar TO-5 header, it can deliver output currents in excess of 200 mA, if adequate heat sinking is provided. With the TO-3 power package, the available output current is greater than 1A.
