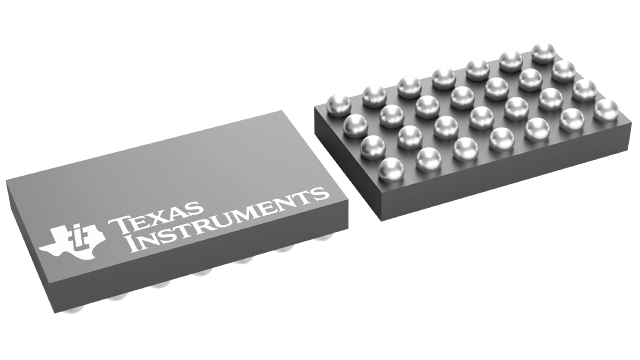

LM3102TL-1/NOPB Texas Instruments - Yeehing Electronics
Synchronous 1MHz 2.5A Step-Down Voltage Regulator
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 4.49 |
| 100 — 249 | 3.66 |
| 250 — 999 | 2.877 |
| 1,000 + | 1.71 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Switching Voltage Regulators |
| RoHS | Y |
| Mounting Style | SMD/SMT |
| Package / Case | DSBGA-28 |
| Output Voltage | 6 V |
| Output Current | 2.5 A |
| Input Voltage MAX | 42 V |
| Topology | Buck |
| Switching Frequency | 1 MHz |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Series | LM3102 |
| Packaging | Reel |
| Operating Temperature Range | - 40 C to + 125 C |
| Type | Voltage Converter |
| Brand | Texas Instruments |
| Development Kit | LM3102EVAL/NOPB |
| Operating Supply Current | 1 mA |
| Product Type | Switching Voltage Regulators |
| Factory Pack Quantity | 250 |
| Subcategory | PMIC - Power Management ICs |
| Tradename | SIMPLE SWITCHER |
| Unit Weight | 0.000360 oz |
For more information, please refer to datasheet
Documents
| LM3102TL-1/NOPB Datasheet |
More Information
The LM3102 Synchronously Rectified Buck Converter features all required functions to implement a highly efficient and cost-effective buck regulator. The device can supply 2.5 A to loads with an output voltage as low as 0.8 V. Dual N-channel synchronous MOSFET switches allow a low component count, thus reducing complexity and minimizing board size.
