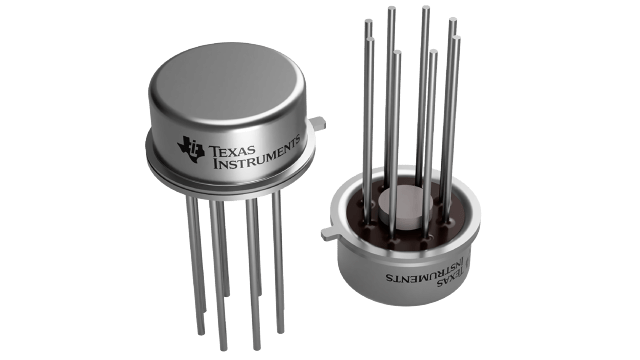

LM311H/NOPB Texas Instruments - Yeehing Electronics
Voltage Comparator
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 11.119 |
100 — 249 | 9.065 |
250 — 999 | 7.125 |
1,000 + | 4.23 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | Analog Comparators |
RoHS | Y |
Mounting Style | Through Hole |
Package / Case | TO-99 |
Comparator Type | General Purpose |
Number of Channels | 1 Channel |
Output Type | Open Collector |
Ib - Input Bias Current | 250 nA |
Vos - Input Offset Voltage | 7.5 mV |
Supply Voltage - Max | 36 V |
Supply Voltage - Min | 5 V |
Operating Supply Current | 7.5 mA |
Response Time | 200 ns |
Minimum Operating Temperature | 0 C |
Maximum Operating Temperature | + 70 C |
Packaging | Bulk |
Features | Strobe, Vos Adj Pin |
Height | 4.45 mm |
Length | 9.14 mm |
Product | Analog Comparators |
Series | LM311-N-MIL |
Supply Type | Single, Dual |
Technology | Bipolar |
Type | Voltage Comparator |
Width | 9.14 mm |
Brand | Texas Instruments |
Shutdown | Shutdown |
Dual Supply Voltage | +/- 3 V, +/- 5 V, +/- 9 V, +/- 12 V, +/- 15 V |
GBP - Gain Bandwidth Product | - |
Maximum Dual Supply Voltage | +/- 18 V |
Minimum Dual Supply Voltage | +/- 2.5 V |
Operating Supply Voltage | 9 V, 12 V, 15 V, 18 V, 24 V, 28 V |
Pd - Power Dissipation | 500 mW (1/2 W) |
Product Type | Analog Comparators |
Factory Pack Quantity | 500 |
Subcategory | Amplifier ICs |
Vcm - Common Mode Voltage | 0.5 V |
Voltage Gain dB | 106.02 dB |
Unit Weight | 0.007654 oz |
For more information, please refer to datasheet
Documents
LM311H/NOPB Datasheet |
More Information
The LM111-N, LM211-N and LM311-N are voltage comparators that have input currents nearly a thousand times lower than devices like the LM106 or LM710. They are also designed to operate over a wider range of supply voltages: from standard ±15V op amp supplies down to the single 5V supply used for IC logic. Their output is compatible with RTL, DTL and TTL as well as MOS circuits. Further, they can drive lamps or relays, switching voltages up to 50V at currents as high as 50 mA.
