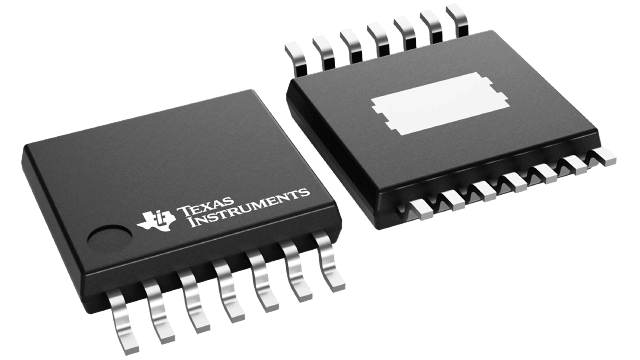

LM3152MHX-3.3/NOPB Texas Instruments - Yeehing Electronics
42V Synchronous Step-Down Controller with 3.3V Output and 500kHz Switching Frequency
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 2.64 |
| 100 — 249 | 2.313 |
| 250 — 999 | 1.622 |
| 1,000 + | 1.05 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Switching Controllers |
| RoHS | Y |
| Topology | Buck |
| Number of Outputs | 1 Output |
| Switching Frequency | 250 kHz, 500 kHz, 750 kHz |
| Input Voltage | 6 V to 42 V |
| Output Voltage | 3.3 V |
| Output Current | 12 A |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Mounting Style | SMD/SMT |
| Package / Case | HTSSOP-14 |
| Packaging | Reel |
| Operating Temperature Range | - 40 C to + 125 C |
| Series | LM3152 |
| Type | Step Down |
| Brand | Texas Instruments |
| Shutdown | Shutdown |
| Product Type | Switching Controllers |
| Factory Pack Quantity | 2500 |
| Subcategory | PMIC - Power Management ICs |
| Tradename | SIMPLE SWITCHER |
| Unit Weight | 0.002046 oz |
For more information, please refer to datasheet
Documents
| LM3152MHX-3.3/NOPB Datasheet |
More Information
The LM3151/2/3 SIMPLE SWITCHER
