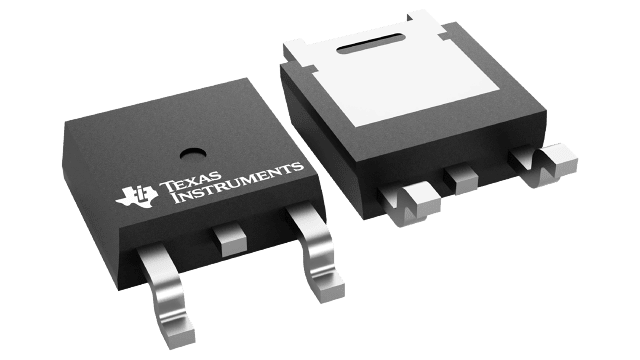

LM317AMDT/NOPB Texas Instruments - Yeehing Electronics
1.5-A, 40-V, adjustable linear voltage regulator with high-accuracy
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 2.092 |
100 — 249 | 1.728 |
250 — 999 | 1.241 |
1,000 + | 0.65 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | Linear Voltage Regulators |
RoHS | Y |
Mounting Style | SMD/SMT |
Package / Case | TO-252-3 |
Number of Outputs | 1 Output |
Polarity | Positive |
Output Voltage | 1.2 V to 37 V |
Output Current | 500 mA |
Output Type | Adjustable |
Input Voltage MAX | 40 V |
Input Voltage MIN | 4.2 V |
Minimum Operating Temperature | - 40 C |
Maximum Operating Temperature | + 125 C |
Load Regulation | 0.5 % |
Line Regulation | 0.01 %/V |
Series | LM317A |
Packaging | Tube |
Operating Temperature Range | - 40 C to + 125 C |
Brand | Texas Instruments |
PSRR / Ripple Rejection - Typ | 80 dB |
Moisture Sensitive | Yes |
Product Type | Linear Voltage Regulators |
Factory Pack Quantity | 75 |
Subcategory | PMIC - Power Management ICs |
Unit Weight | 0.063493 oz |
For more information, please refer to datasheet
Documents
LM317AMDT/NOPB Datasheet |
More Information
The LM317A adjustable 3-terminal, positive-voltage regulators are capable of supplying current in excess of 1.5 A over a 1.25-V to 37-V output range and provide 1% output-voltage accuracy. Both line regulation and load regulation are better achieved with the LM317A device than with standard fixed regulators.
