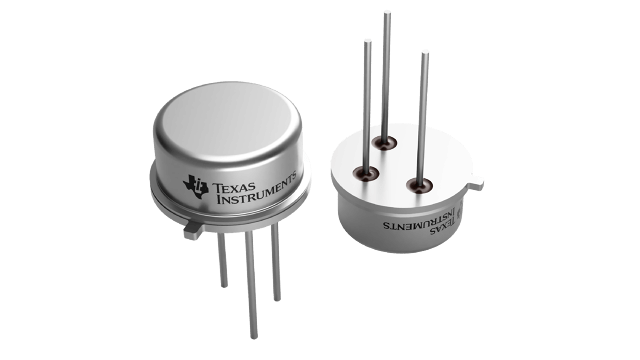

LM317H Texas Instruments - Yeehing Electronics

1.5-A, 40-V, adjustable linear voltage regulator

Pricing (USD)

Quantity	Unit Price
1 — 99	17.197
100 — 249	14.019
250 — 999	11.019
1,000 +	6.54

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Linear Voltage Regulators
RoHS	Y
Mounting Style	Through Hole
Package / Case	TO-39
Number of Outputs	1 Output
Polarity	Positive
Output Voltage	1.2 V to 37 V
Output Current	500 mA
Output Type	Adjustable
Input Voltage MAX	40 V
Input Voltage MIN	4.2 V
Minimum Operating Temperature	0 C
Maximum Operating Temperature	+ 125 C
Load Regulation	0.5 %
Line Regulation	0.04 %/V
Series	LM317-N-MIL
Packaging	Bulk
Operating Temperature Range	0 C to + 125 C
Product	Voltage Regulators
Type	3 Terminal Positive Regulator
Brand	Texas Instruments
PSRR / Ripple Rejection - Typ	80 dB
Pd - Power Dissipation	Internally Limited
Product Type	Linear Voltage Regulators
Factory Pack Quantity	500
Subcategory	PMIC - Power Management ICs

For more information, please refer to datasheet

Documents

LM317H Datasheet

More Information

The LM117 and LM317-N series of adjustable 3-pin positive voltage regulators are capable of supplying in excess of 1.5 A over a 1.25-V to 37-V output range and a wide temperature range. They are exceptionally easy to use and require only two external resistors to set the output voltage. Further, both line and load regulation are better than standard fixed regulators.
