Texas Instruments
LM317H/NOPB
LM317H/NOPB
Regular price
$5.54 USD
Regular price
Sale price
$5.54 USD
Unit price
per
Couldn't load pickup availability

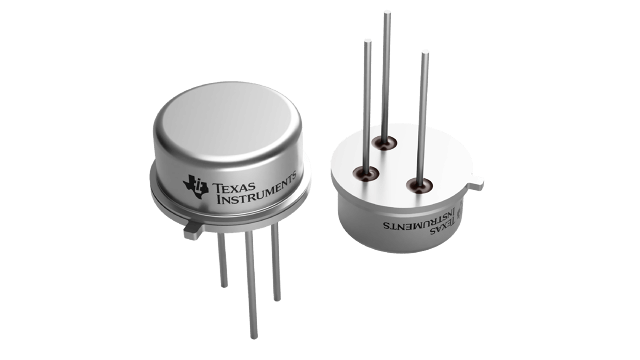

LM317H/NOPB Texas Instruments - Yeehing Electronics
1.5-A, 40-V, adjustable linear voltage regulator
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 14.571 |
| 100 — 249 | 11.879 |
| 250 — 999 | 9.337 |
| 1,000 + | 5.54 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Linear Voltage Regulators |
| RoHS | Y |
| Mounting Style | Through Hole |
| Package / Case | TO-39 |
| Number of Outputs | 1 Output |
| Polarity | Positive |
| Output Voltage | 1.2 V to 37 V |
| Output Current | 500 mA |
| Output Type | Adjustable |
| Input Voltage MAX | 40 V |
| Input Voltage MIN | 4.2 V |
| Minimum Operating Temperature | 0 C |
| Maximum Operating Temperature | + 125 C |
| Load Regulation | 0.5 % |
| Line Regulation | 0.04 %/V |
| Series | LM317-N-MIL |
| Packaging | Bulk |
| Operating Temperature Range | 0 C to + 125 C |
| Brand | Texas Instruments |
| PSRR / Ripple Rejection - Typ | 80 dB |
| Product Type | Linear Voltage Regulators |
| Factory Pack Quantity | 500 |
| Subcategory | PMIC - Power Management ICs |
For more information, please refer to datasheet
Documents
| LM317H/NOPB Datasheet |
More Information
The LM117 and LM317-N series of adjustable 3-pin positive voltage regulators are capable of supplying in excess of 1.5 A over a 1.25-V to 37-V output range and a wide temperature range. They are exceptionally easy to use and require only two external resistors to set the output voltage. Further, both line and load regulation are better than standard fixed regulators.
