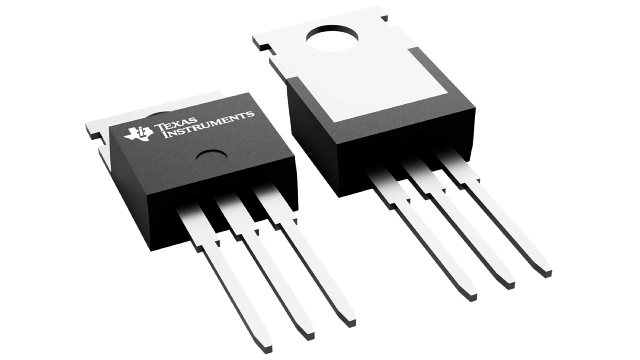

LM317KCT Texas Instruments - Yeehing Electronics
1.5-A, 40-V, adjustable linear voltage regulator
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 0.499 |
100 — 249 | 0.339 |
250 — 999 | 0.262 |
1,000 + | 0.12 |
The above prices are for reference only.
Specifications
For more information, please refer to datasheet
Documents
LM317KCT Datasheet |
More Information
The LM317 device is an adjustable three-terminal positive-voltage regulator capable of supplying more than 1.5 A over an output-voltage range of 1.25 V to 37 V. It requires only two external resistors to set the output voltage. The device features a typical line regulation of 0.01% and typical load regulation of 0.1%. It includes current limiting, thermal overload protection, and safe operating area protection. Overload protection remains functional even if the ADJUST terminal is disconnected.
