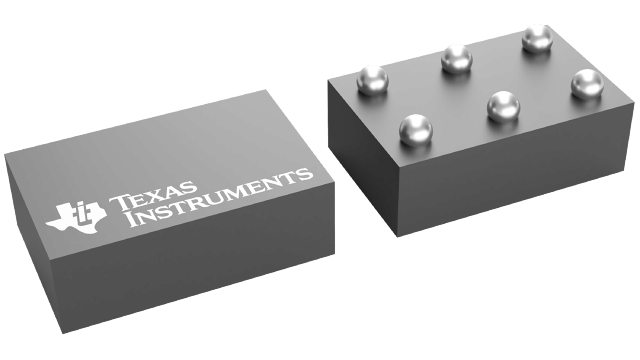

LM317LITP/NOPB Texas Instruments - Yeehing Electronics

100-mA, 40-V, high-PSRR, adjustable linear voltage regulator

Pricing (USD)

Quantity	Unit Price
1 — 99	0.818
100 — 249	0.629
250 — 999	0.463
1,000 +	0.23

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Linear Voltage Regulators
RoHS	Y
Mounting Style	SMD/SMT
Package / Case	uSMD
Number of Outputs	1 Output
Polarity	Positive
Output Voltage	1.2 V to 37 V
Output Current	100 mA
Output Type	Adjustable
Input Voltage MAX	40 V
Input Voltage MIN	4.2 V
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 125 C
Load Regulation	0.5 %
Line Regulation	0.04 %/V
Series	LM317L-N
Packaging	Reel
Operating Temperature Range	- 40 C to + 125 C
Brand	Texas Instruments
PSRR / Ripple Rejection - Typ	80 dB
Product Type	Linear Voltage Regulators
Factory Pack Quantity	250
Subcategory	PMIC - Power Management ICs
Unit Weight	0.000053 oz

For more information, please refer to datasheet

Documents

LM317LITP/NOPB Datasheet

More Information

The LM317L-N is an adjustable positive voltage regulator capable of supplying 100 mA over a 1.2-V to 37-V output range. The LM317L-N is easy to use and requires only two external resistors to set the output voltage. Both line and load regulation are better than standard fixed regulators. The LM317L-N is available packaged in a standard, easy-to-use
