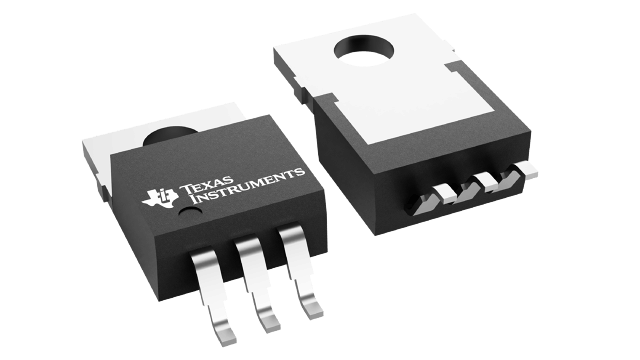

LM317T/LF01 Texas Instruments - Yeehing Electronics

1.5-A, 40-V, adjustable linear voltage regulator

Pricing (USD)

Quantity	Unit Price
1 — 99	1.216
100 — 249	1.005
250 — 999	0.722
1,000 +	0.38

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Linear Voltage Regulators
RoHS	N
Mounting Style	Through Hole
Package / Case	TO-220
Number of Outputs	1 Output
Polarity	Positive
Output Voltage	1.2 V to 37 V
Output Current	1.5 A
Output Type	Adjustable
Input Voltage MAX	40 V
Input Voltage MIN	4.2 V
Minimum Operating Temperature	0 C
Maximum Operating Temperature	+ 125 C
Load Regulation	0.5 %
Line Regulation	0.04 %/V
Series	LM317-N
Packaging	Tube
Operating Temperature Range	0 C to + 125 C
Brand	Texas Instruments
Moisture Sensitive	Yes
Product Type	Linear Voltage Regulators
Factory Pack Quantity	45
Subcategory	PMIC - Power Management ICs
Unit Weight	0.081130 oz

For more information, please refer to datasheet

Documents

LM317T/LF01 Datasheet

More Information

The LM117 and LM317-N series of adjustable 3-pin positive voltage regulators are capable of supplying in excess of 1.5 A over a 1.25-V to 37-V output range and a wide temperature range. They are exceptionally easy to use and require only two external resistors to set the output voltage. Further, both line and load regulation are better than standard fixed regulators.
