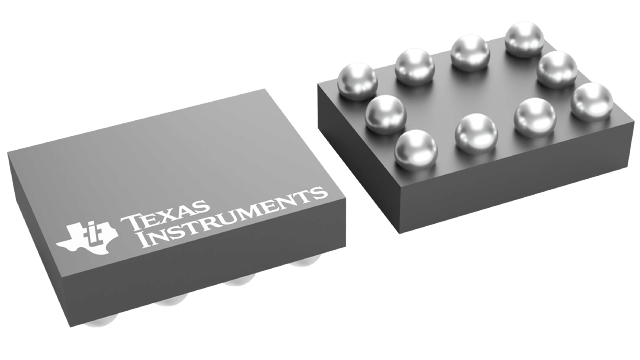

LM3203TL/NOPB Texas Instruments - Yeehing Electronics

Miniature, Adjustable, Step-Down DC-DC Converter with Bypass Mode for RF Power Amplifiers

Pricing (USD)

Quantity	Unit Price
1 — 99	3.598
100 — 249	3.152
250 — 999	2.21
1,000 +	1.25

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Switching Controllers
RoHS	Y
Topology	Buck
Number of Outputs	1 Output
Switching Frequency	2000 kHz
Duty Cycle - Max	96 %
Input Voltage	5.5 V
Output Voltage	0.8 V to 3.6 V
Output Current	500 mA
Minimum Operating Temperature	- 30 C
Maximum Operating Temperature	+ 85 C
Mounting Style	SMD/SMT
Package / Case	uSMD
Packaging	Reel
Description/Function	DC-DC converter optimized for powering RF power amplifier
Isolation	Non-Isolated
Operating Temperature Range	- 30 C to + 85 C
Output Type	Adjustable
Product	Step-Down DC-DC Converters
Series	LM3203
Type	Step Down
Brand	Texas Instruments
Shutdown	Shutdown
Operating Supply Current	500 mA
Operating Supply Voltage	2.7 V to 5.5 V
Product Type	Switching Controllers
Rise Time	50 us
Factory Pack Quantity	250
Subcategory	PMIC - Power Management ICs

For more information, please refer to datasheet

Documents

LM3203TL/NOPB Datasheet

More Information

The LM3203 is a DC-DC converter optimized for powering RF power amplifiers (PAs) from a single Lithium-Ion cell. However, they may be used in many other applications. It steps down an input voltage of 2.7V to 5.5V to an adjustable output voltage of 0.8V to 3.6V. The output voltage is set using a VCON analog input and external resistor dividers for optimizing efficiency of the RF PA at various power levels.
