Description

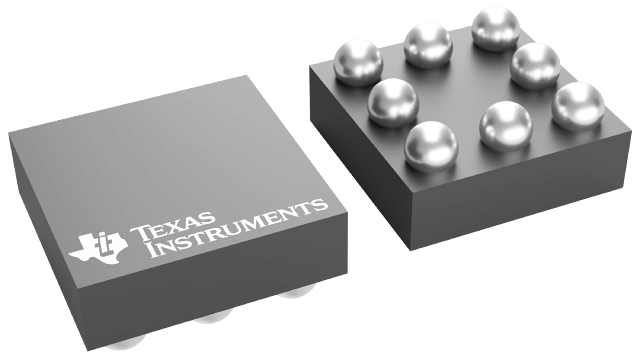

LM3208TL/NOPB Texas Instruments - Yeehing Electronics
650mA Miniature, Adjustable, Step-Down DC-DC Converter for RF Power Amplifiers
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 2.414 |
| 100 — 249 | 2.115 |
| 250 — 999 | 1.483 |
| 1,000 + | 0.84 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Switching Voltage Regulators |
| RoHS | Y |
| Mounting Style | SMD/SMT |
| Package / Case | uSMD-8 |
| Output Voltage | 0.8 V to 3.6 V |
| Output Current | 650 mA |
| Number of Outputs | 1 Output |
| Switching Frequency | 2000 KHz |
| Minimum Operating Temperature | - 30 C |
| Maximum Operating Temperature | + 85 C |
| Series | LM3208 |
| Packaging | Reel |
| Input Voltage | 5.5 V |
| Operating Temperature Range | - 30 C to + 85 C |
| Type | Step Down |
| Brand | Texas Instruments |
| Product Type | Switching Voltage Regulators |
| Factory Pack Quantity | 250 |
| Subcategory | PMIC - Power Management ICs |
| Unit Weight | 0.000120 oz |
For more information, please refer to datasheet
Documents
| LM3208TL/NOPB Datasheet |
More Information
The LM3208 is a DC-DC converter optimized for powering RF power amplifiers (PAs) from a single Lithium-Ion cell. However, it may be used in many other applications. It steps down an input voltage in the range from 2.7V to 5.5V to an adjustable output voltage of 0.8V to 3.6V. Output voltage is set by using a VCON analog input to control power levels and efficiency of the RF PA.
