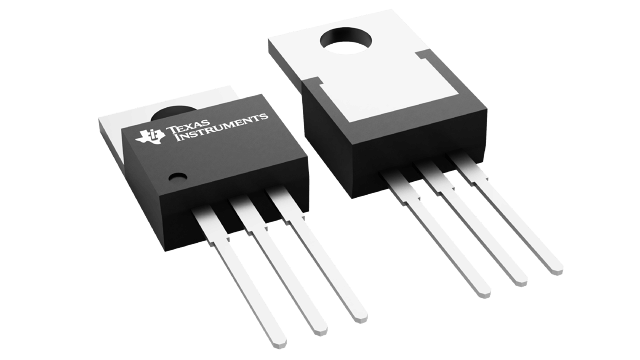

LM320T-15/NOPB Texas Instruments - Yeehing Electronics
1.5-A, negative linear voltage regulator with high-PSRR
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 1.339 |
| 100 — 249 | 1.03 |
| 250 — 999 | 0.758 |
| 1,000 + | 0.38 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Linear Voltage Regulators |
| RoHS | Y |
| Mounting Style | Through Hole |
| Package / Case | TO-220-3 |
| Number of Outputs | 1 Output |
| Polarity | Negative |
| Output Voltage | - 15 V |
| Output Current | 1 A |
| Output Type | Fixed |
| Input Voltage MAX | - 35 V |
| Input Voltage MIN | - 17.5 V |
| Minimum Operating Temperature | 0 C |
| Maximum Operating Temperature | + 125 C |
| Load Regulation | 80 mV |
| Line Regulation | 20 mV |
| Series | LM320-N |
| Packaging | Tube |
| Operating Temperature Range | 0 C to + 125 C |
| Brand | Texas Instruments |
| PSRR / Ripple Rejection - Typ | 80 dB |
| Pd - Power Dissipation | 15 W |
| Product Type | Linear Voltage Regulators |
| Factory Pack Quantity | 45 |
| Subcategory | PMIC - Power Management ICs |
| Unit Weight | 0.081130 oz |
For more information, please refer to datasheet
Documents
| LM320T-15/NOPB Datasheet |
More Information
The LM120 series are three-terminal negative regulators with a fixed output voltage of −5V, −12V, and −15V, and up to 1.5A load current capability. Where other voltages are required, the LM137 and LM137HV series provide an output voltage range of −1.2V to −47V.
