Texas Instruments
LM3241TLE/NOPB
LM3241TLE/NOPB
Regular price
$0.43 USD
Regular price
Sale price
$0.43 USD
Unit price
per
Couldn't load pickup availability

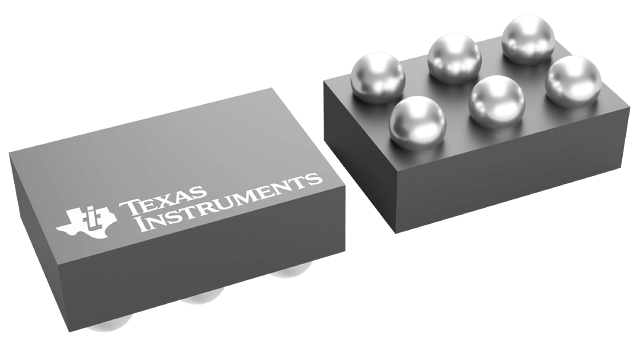

LM3241TLE/NOPB Texas Instruments - Yeehing Electronics
6MHz, 750mA Miniature, Adjustable, Step-Down DC-DC Converter for RF Power Amplifiers
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 1.531 |
| 100 — 249 | 1.178 |
| 250 — 999 | 0.867 |
| 1,000 + | 0.43 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Switching Voltage Regulators |
| RoHS | Y |
| Mounting Style | SMD/SMT |
| Package / Case | DSBGA-6 |
| Output Voltage | 600 mV to 3.4 V |
| Output Current | 750 mA |
| Number of Outputs | 1 Output |
| Input Voltage MAX | 5.5 V |
| Input Voltage MIN | 2.7 V |
| Switching Frequency | 6 MHz |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Series | LM3241 |
| Packaging | Reel |
| Operating Temperature Range | - 40 C to + 85 C |
| Type | Voltage Converter |
| Brand | Texas Instruments |
| Product Type | Switching Voltage Regulators |
| Factory Pack Quantity | 250 |
| Subcategory | PMIC - Power Management ICs |
| Unit Weight | 0.000060 oz |
For more information, please refer to datasheet
Documents
| LM3241TLE/NOPB Datasheet |
More Information
The LM3241 is a DC-DC converter optimized for powering RF power amplifiers (PAs) from a single Lithium-Ion cell. The device can also be used in many other applications. The device steps down an input voltage from 2.7 V to 5.5 V to an adjustable output voltage from 0.6 V to 3.4 V. The output voltage is set using a VCON analog input for controlling power levels and efficiency of the RF PA.
