LM3242TMX/NOPB Texas Instruments - Yeehing Electronics
6MHz, 750mA Miniature, Adjustable, Step-Down DC-DC Converter with Bypass
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 1.277 |
| 100 — 249 | 0.982 |
| 250 — 999 | 0.723 |
| 1,000 + | 0.41 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Switching Voltage Regulators |
| RoHS | Y |
| Mounting Style | SMD/SMT |

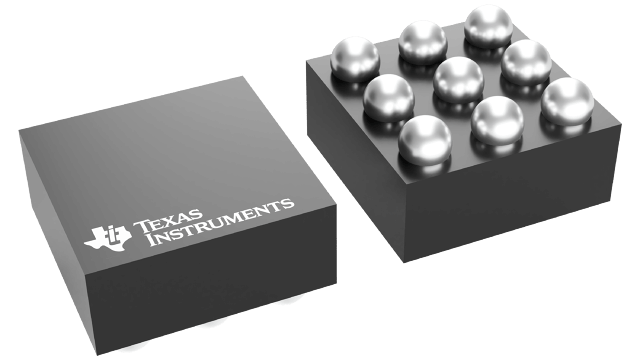

| Package / Case | DSBGA-9 |
| Output Voltage | 400 mV to 3.6 V |
| Output Current | 750 mA |
| Number of Outputs | 1 Output |
| Input Voltage MAX | 5.5 V |
| Topology | Buck |
| Input Voltage MIN | 2.7 V |
| Switching Frequency | 6 MHz |
| Minimum Operating Temperature | - 30 C |
| Maximum Operating Temperature | + 90 C |
| Series | LM3242 |
| Packaging | Reel |
| Operating Temperature Range | - 30 C to + 90 C |
| Type | Voltage Converter |
| Brand | Texas Instruments |
| Product Type | Switching Voltage Regulators |
| Factory Pack Quantity | 3000 |
| Subcategory | PMIC - Power Management ICs |
| Supply Voltage - Min | 2.7 V |
| Unit Weight | 0.000078 oz |
For more information, please refer to datasheet
Documents
| LM3242TMX/NOPB Datasheet |
More Information
The LM3242 is a DC-DC converter optimized for powering RF power amplifiers (PAs) from a single lithium-ion cell; however, it may be used in many other applications. It steps down an input voltage from 2.7 V to 5.5 V to an adjustable output voltage from 0.4 V to 3.6 V. Output voltage is set using a VCON analog input for controlling power levels and efficiency of the RF PA.
