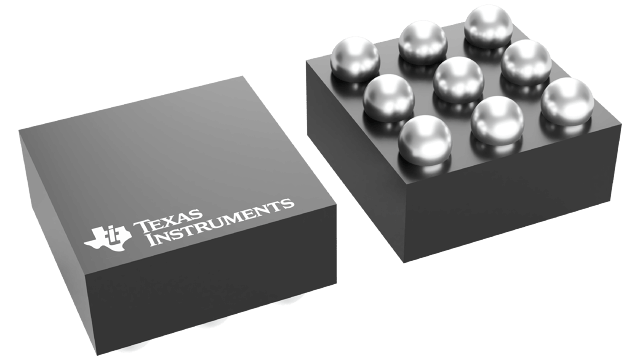

LM3262TME/NOPB Texas Instruments - Yeehing Electronics

6MHz, 800mA Miniature, Adjustable, Step-Down DC-DC Converter with Bypass

Pricing (USD)

Quantity	Unit Price
1 — 99	1.531
100 — 249	1.178
250 — 999	0.867
1,000 +	0.43

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Switching Voltage Regulators
RoHS	Y
Mounting Style	SMD/SMT
Package / Case	DSBGA-9
Output Voltage	400 mV to 3.6 V
Output Current	800 mA
Number of Outputs	1 Output
Input Voltage MAX	5.5 V
Topology	Buck
Input Voltage MIN	2.5 V
Switching Frequency	6 MHz
Minimum Operating Temperature	- 30 C
Maximum Operating Temperature	+ 90 C
Series	LM3262
Packaging	Reel
Operating Temperature Range	- 30 C to + 90 C
Type	Step-Down DC/DC Converter
Brand	Texas Instruments
Product Type	Switching Voltage Regulators
Factory Pack Quantity	250
Subcategory	PMIC - Power Management ICs

For more information, please refer to datasheet

Documents

LM3262TME/NOPB Datasheet

More Information

The LM3262 is a DC-DC converter optimized for powering RF power amplifiers (PAs) from a single lithium-ion cell; however, it may be used in many other applications such as USB-powered portable applications. The device 2.5-V to 5.5-V input voltage can be stepped down to an adjustable output voltage range from 0.4 V to 3.6 V. Output voltage is set using a VCON analog input which enables improved RF-stage PA efficiencies.
