Texas Instruments

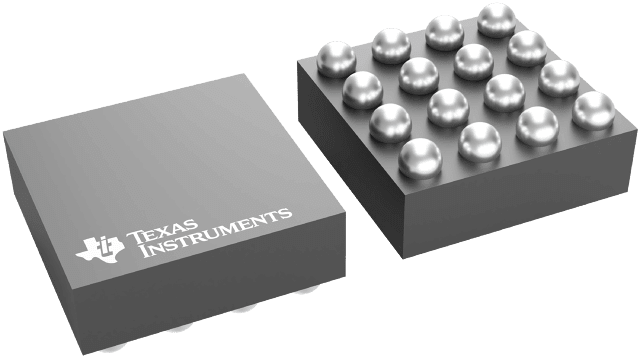

LM3263TME/NOPB
LM3263TME/NOPB
Regular price
$0.37 USD
Regular price
Sale price
$0.37 USD
Unit price
per
Couldn't load pickup availability
LM3263TME/NOPB Texas Instruments - Yeehing Electronics
High-Current Step-Down DC/DC Converter with MIPI® RF Front-End Interface
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 1.183 |
| 100 — 249 | 0.977 |
| 250 — 999 | 0.702 |
| 1,000 + | 0.37 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Switching Voltage Regulators |
| RoHS | Y |
| Mounting Style | SMD/SMT |
| Package / Case | DSBGA-16 |
| Output Voltage | 400 mV to 3.6 V |
| Output Current | 2.5 A |
| Number of Outputs | 1 Output |
| Input Voltage MAX | 5.5 V |
| Topology | Buck |
| Input Voltage MIN | 2.7 V |
| Switching Frequency | 2.7 MHz |
| Minimum Operating Temperature | - 30 C |
| Maximum Operating Temperature | + 90 C |
| Series | LM3263 |
| Packaging | Reel |
| Operating Temperature Range | - 30 C to + 90 C |
| Type | Step Down Converter |
| Brand | Texas Instruments |
| Product Type | Switching Voltage Regulators |
| Factory Pack Quantity | 250 |
| Subcategory | PMIC - Power Management ICs |
| Supply Voltage - Min | 2.7 V |
| Unit Weight | 0.002822 oz |
For more information, please refer to datasheet
Documents
| LM3263TME/NOPB Datasheet |
More Information
The LM3263 is a DC-DC converter optimized for powering multi-mode multi-band RF power amplifiers (PAs) from a single lithium-ion cell. The LM3263 steps down an input voltage from 2.7 V to 5.5 V to a dynamically adjustable output voltage of 0.4 V to 3.6 V. The output voltage is externally programmed through the RFFE Digital Control Interface and is set to ensure efficient operation at all power levels of the RF PA.
