Texas Instruments
LM3281YFQR
LM3281YFQR
Regular price
$0.31 USD
Regular price
Sale price
$0.31 USD
Unit price
per
Couldn't load pickup availability

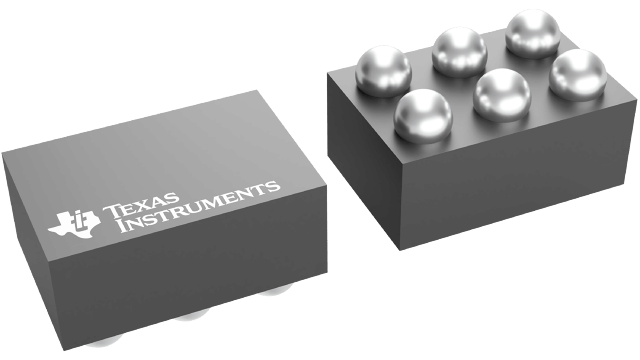

LM3281YFQR Texas Instruments - Yeehing Electronics
3.3-V, 1.2-A, 6-MHz Mini Step-Down DC-DC Converter
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 1.331 |
| 100 — 249 | 1.024 |
| 250 — 999 | 0.754 |
| 1,000 + | 0.31 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Switching Voltage Regulators |
| RoHS | Y |
| Mounting Style | SMD/SMT |
| Package / Case | DSGBA-6 |
| Minimum Operating Temperature | - 30 C |
| Maximum Operating Temperature | + 90 C |
| Series | LM3281 |
| Packaging | Reel |
| Height | 0.4 mm |
| Length | 1.33 mm |
| Operating Temperature Range | - 30 C to + 90 C |
| Width | 0.956 mm |
| Brand | Texas Instruments |
| Development Kit | LM3281EVM |
| Operating Supply Current | 15 uA |
| Product Type | Switching Voltage Regulators |
| Factory Pack Quantity | 3000 |
| Subcategory | PMIC - Power Management ICs |
| Unit Weight | 0.000060 oz |
For more information, please refer to datasheet
Documents
| LM3281YFQR Datasheet |
More Information
The LM3281 is a high-efficiency low-noise miniature DC-DC converter optimized for powering noise-sensitive wireless connectivity chipsets and RF Front End Modules (FEMs) from a single Lithium-Ion cell. The LM3281 is ideal for “always on” applications with very low unloaded quiescent current of 16 µA (typ.).
