Texas Instruments

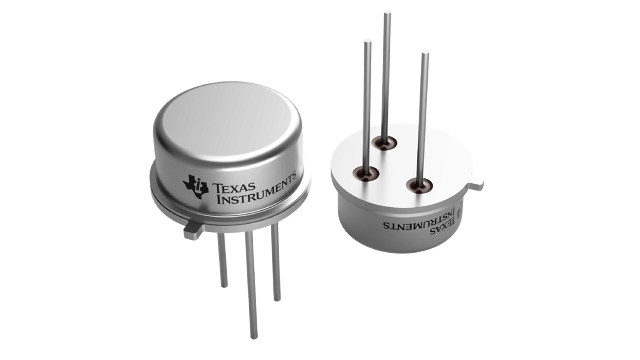

LM337H
LM337H
Regular price
$6.42 USD
Regular price
Sale price
$6.42 USD
Unit price
per
Couldn't load pickup availability
LM337H Texas Instruments - Yeehing Electronics
1.5A Adjustable Output Negative Regulator
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 16.867 |
| 100 — 249 | 13.751 |
| 250 — 999 | 10.808 |
| 1,000 + | 6.42 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Linear Voltage Regulators |
| RoHS | Y |
| Mounting Style | Through Hole |
| Package / Case | TO-39 |
| Number of Outputs | 1 Output |
| Polarity | Negative |
| Output Voltage | - 1.2 V to - 37 V |
| Output Current | 500 mA |
| Output Type | Adjustable |
| Input Voltage MAX | - 50 V |
| Input Voltage MIN | - 4.2 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Load Regulation | 1 % |
| Line Regulation | 0.04 %/V |
| Series | LM337-N-MIL |
| Packaging | Bulk |
| Operating Temperature Range | - 40 C to + 125 C |
| Brand | Texas Instruments |
| PSRR / Ripple Rejection - Typ | 77 dB |
| Pd - Power Dissipation | 2000 mW |
| Product Type | Linear Voltage Regulators |
| Factory Pack Quantity | 500 |
| Subcategory | PMIC - Power Management ICs |
For more information, please refer to datasheet
Documents
| LM337H Datasheet |
More Information
The LM337-N-MIL is an adjustable 3-terminal negative voltage regulator capable of supplying
