Texas Instruments
LM337KCSE3
LM337KCSE3
Regular price
$0.21 USD
Regular price
Sale price
$0.21 USD
Unit price
per
Couldn't load pickup availability

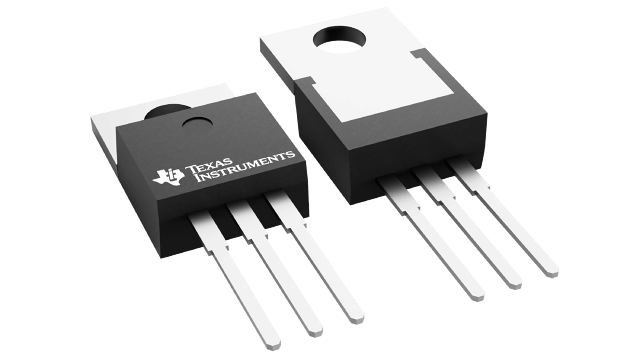

LM337KCSE3 Texas Instruments - Yeehing Electronics
1.5-A, negative, adjustable linear voltage regulator
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 0.743 |
| 100 — 249 | 0.572 |
| 250 — 999 | 0.421 |
| 1,000 + | 0.21 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Linear Voltage Regulators |
| RoHS | Y |
| Mounting Style | Through Hole |
| Package / Case | TO-220-3 |
| Number of Outputs | 1 Output |
| Polarity | Negative |
| Output Voltage | - 1.2 V to - 37 V |
| Output Current | 1.5 A |
| Output Type | Adjustable |
| Input Voltage MAX | - 40 V |
| Input Voltage MIN | - 4.2 V |
| Minimum Operating Temperature | 0 C |
| Maximum Operating Temperature | + 125 C |
| Load Regulation | 1 % |
| Line Regulation | 0.04 %/V |
| Series | LM337 |
| Packaging | Tube |
| Height | 8.7 mm |
| Length | 10.16 mm |
| Operating Temperature Range | 0 C to + 125 C |
| Width | 4.58 mm |
| Brand | Texas Instruments |
| PSRR / Ripple Rejection - Typ | 77 dB |
| Product Type | Linear Voltage Regulators |
| Factory Pack Quantity | 50 |
| Subcategory | PMIC - Power Management ICs |
| Unit Weight | 0.067197 oz |
For more information, please refer to datasheet
Documents
| LM337KCSE3 Datasheet |
More Information
The LM237 and LM337 are adjustable 3-terminal negative-voltage regulators capable of supplying in excess of –1.5 A over an output voltage range of –1.2 V to –37 V. They require only two external resistors to set the output voltage and one output capacitor for frequency compensation.
