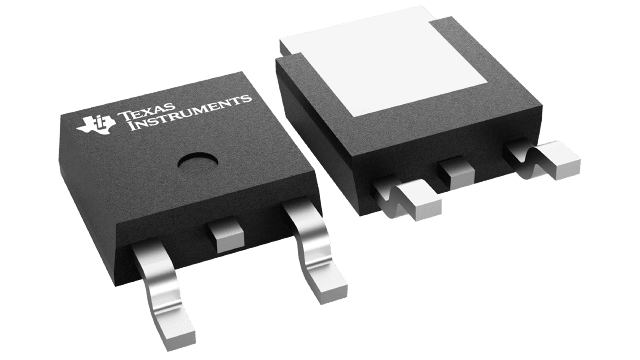

LM337KVURG3 Texas Instruments - Yeehing Electronics

1.5-A, negative, adjustable linear voltage regulator

Pricing (USD)

Quantity	Unit Price
1 — 99	0.743
100 — 249	0.572
250 — 999	0.421
1,000 +	0.21

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Linear Voltage Regulators
RoHS	Y
Mounting Style	SMD/SMT
Package / Case	TO-252-3
Number of Outputs	1 Output
Polarity	Negative
Output Voltage	- 1.2 V to - 37 V
Output Current	1.5 A
Output Type	Adjustable
Input Voltage MAX	- 40 V
Input Voltage MIN	- 4.2 V
Minimum Operating Temperature	0 C
Maximum Operating Temperature	+ 125 C
Load Regulation	1 %
Line Regulation	0.04 %/V
Series	LM337
Packaging	Reel
Height	2.3 mm
Length	6.6 mm
Operating Temperature Range	0 C to + 125 C
Width	6.1 mm
Brand	Texas Instruments
PSRR / Ripple Rejection - Typ	77 dB
Moisture Sensitive	Yes
Product Type	Linear Voltage Regulators
Factory Pack Quantity	2500
Subcategory	PMIC - Power Management ICs
Unit Weight	0.011598 oz

For more information, please refer to datasheet

Documents

LM337KVURG3 Datasheet

More Information

The LM237 and LM337 are adjustable 3-terminal negative-voltage regulators capable of supplying in excess of –1.5 A over an output voltage range of –1.2 V to –37 V. They require only two external resistors to set the output voltage and one output capacitor for frequency compensation.
