Description

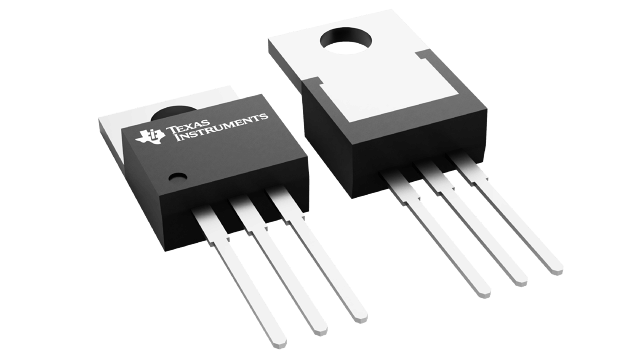

LM337T/NOPB Texas Instruments - Yeehing Electronics
1.5-A, negative, adjustable linear voltage regulator
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 1.602 |
100 — 249 | 1.323 |
250 — 999 | 0.95 |
1,000 + | 0.50 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | Linear Voltage Regulators |
RoHS | E |
Mounting Style | Through Hole |
Package / Case | TO-220-3 |
Number of Outputs | 1 Output |
Polarity | Negative |
Output Voltage | - 1.2 V to - 37 V |
Output Current | 1.5 A |
Output Type | Adjustable |
Input Voltage MAX | 40 V |
Input Voltage MIN | - 4.2 V |
Minimum Operating Temperature | - 40 C |
Maximum Operating Temperature | + 125 C |
Load Regulation | 1 % |
Line Regulation | 0.04 %/V |
Series | LM337-N |
Packaging | Tube |
Operating Temperature Range | - 40 C to + 125 C |
Brand | Texas Instruments |
PSRR / Ripple Rejection - Typ | 77 dB |
Pd - Power Dissipation | 20 W |
Product Type | Linear Voltage Regulators |
Factory Pack Quantity | 45 |
Subcategory | PMIC - Power Management ICs |
Unit Weight | 0.081130 oz |
For more information, please refer to datasheet
Documents
LM337T/NOPB Datasheet |
More Information
The LM137 and LM337-N are adjustable 3-terminal negative voltage regulators capable of supplying 1.5 A or more currents over an output voltage range of 1.25 V to 37 V. It requires only two external resistors to set the output voltage and one output capacitor for frequency compensation. The circuit design has been optimized for excellent regulation and low thermal transients. Further, the LM137 and LM337-N feature internal current limiting, thermal shutdown and safe-area compensation, making it virtually blowout-proof against overloads.
