Texas Instruments

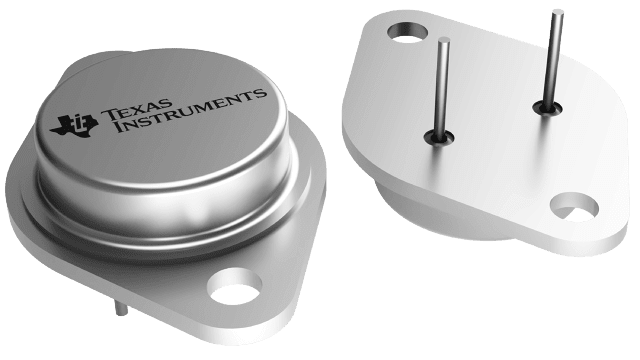

LM340K-5.0/NOPB
LM340K-5.0/NOPB
Couldn't load pickup availability
LM340K-5.0/NOPB Texas Instruments - Yeehing Electronics
1.5A, Fixed Output Linear Regulator
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 63.994 |
| 100 — 249 | 56.883 |
| 250 — 999 | 46.761 |
| 1,000 + | 29.28 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Linear Voltage Regulators |
| RoHS | Y |
| Mounting Style | Through Hole |
| Package / Case | TO-3 |
| Number of Outputs | 1 Output |
| Polarity | Positive |
| Output Voltage | 5 V |
| Output Current | 2.4 A |
| Output Type | Fixed |
| Input Voltage MAX | 35 V |
| Input Voltage MIN | 7.5 V |
| Minimum Operating Temperature | 0 C |
| Maximum Operating Temperature | + 125 C |
| Load Regulation | 50 mV |
| Line Regulation | 50 mV |
| Series | LM340-MIL |
| Packaging | Tray |
| Operating Temperature Range | 0 C to + 125 C |
| Brand | Texas Instruments |
| PSRR / Ripple Rejection - Typ | 80 dB |
| Product Type | Linear Voltage Regulators |
| Factory Pack Quantity | 50 |
| Subcategory | PMIC - Power Management ICs |
| Unit Weight | 0.225789 oz |
For more information, please refer to datasheet
Documents
| LM340K-5.0/NOPB Datasheet |
More Information
The LM340-MIL monolithic 3-pin positive voltage regulators employ internal current-limiting, thermal shutdown and safe-area compensation, making them essentially indestructible. If adequate heat sinking is provided, they can deliver over 1.5-A output current. They are intended as fixed voltage regulators in a wide range of applications including local (on-card) regulation for elimination of noise and distribution problems associated with single-point regulation. In addition to use as fixed voltage regulators, these devices can be used with external components to obtain adjustable output voltages and currents.
