LM3410XSDE/NOPB Texas Instruments - Yeehing Electronics

525kHz/1.6MHz, constant current boost and SEPIC LED driver with internal compensation

Pricing (USD)

Quantity	Unit Price
1 — 99	1.891
100 — 249	1.657
250 — 999	1.162
1,000 +	0.66

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Minimum Operating Temperature	-40
Maximum Operating Temperature	125
Factory Pack Quantity	250

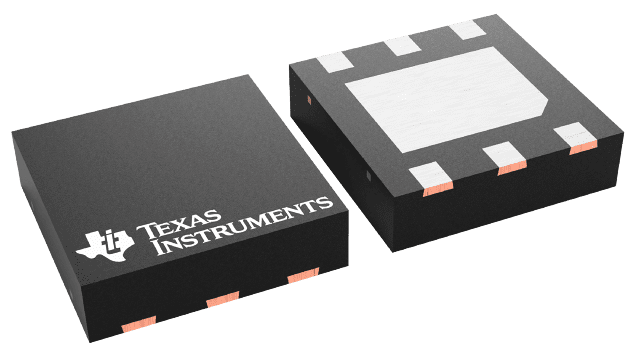

Package | Pins	WSON (NGG) | 6

For more information, please refer to datasheet

Documents

LM3410XSDE/NOPB Datasheet

More Information

The LM3410 and LM3410-Q1 constant current LED driver are a monolithic, high frequency, PWM DC-DC converter, available in 6-pin WSON, 8-pin MSOP-PowerPad™, and 5-pin SOT-23 packages. With a minimum of external components the LM3410 and LM3410-Q1 are easy to use. It can drive 2.8-A (typical) peak currents with an internal 170-mΩ NMOS switch. Switching frequency is internally set to either 525 kHz or 1.6 MHz, allowing the use of extremely small surface mount inductors and chip capacitors. Even though the operating frequency is high, efficiencies up to 88% are easy to achieve. External shutdown is included, featuring an ultra-low standby current of 80 nA. The LM3410 and LM3410-Q1 use current-mode control and internal compensation to provide high-performance over a wide range of operating conditions. Additional features include PWM dimming, cycle-by-cycle current limit, and thermal shutdown.
