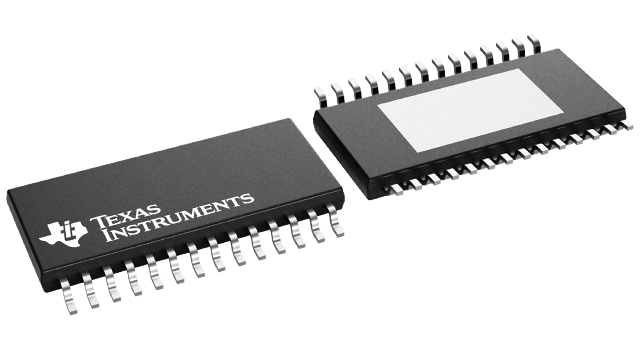

LM3431AMH/NOPB Texas Instruments - Yeehing Electronics
3-channel constant current LED driver with integrated boost controller
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 3.781 |
| 100 — 249 | 3.313 |
| 250 — 999 | 2.323 |
| 1,000 + | 1.31 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | LED Lighting Drivers |
| RoHS | Y |
| Number of Channels | 3 Channel |
| Output Current | 200 mA |
| Input Voltage | 5 V to 36 V |
| Operating Frequency | 200 kHz to 1 MHz |
| Supply Current - Max | 4.85 mA |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Mounting Style | SMD/SMT |
| Package / Case | HTSSOP-28 |
| Series | LM3431 |
| Packaging | Tube |
| Features | Adjustable Switch Frequency, Enable/Shutdown, Soft Start, Thermal Shutdown |
| Height | 0.9 mm |
| Length | 9.7 mm |
| Operating Temperature Range | - 40 C to + 125 C |
| Output Type | Constant Current |
| Type | Inductive |
| Width | 4.4 mm |
| Brand | Texas Instruments |
| Topology | Boost |
| Dimming | Analog,PWM |
| High Level Output Current | 20000 uA |
| Low Level Output Current | 8000 uA |
| Pd - Power Dissipation | 3100 mW |
| Product Type | LED Lighting Drivers |
| Factory Pack Quantity | 48 |
| Subcategory | Driver ICs |
For more information, please refer to datasheet
Documents
| LM3431AMH/NOPB Datasheet |
More Information
The LM3431 is a 3-channel linear current controller combined with a boost switching controller ideal for driving LED backlight panels in space critical applications. The LM3431 drives 3 external NPN transistors or MOSFETs to deliver high accuracy constant current to 3 LED strings. Output current is adjustable to drive strings in excess of 200 mA. The LM3431 can be expanded to drive as many as 6 LED strings.
