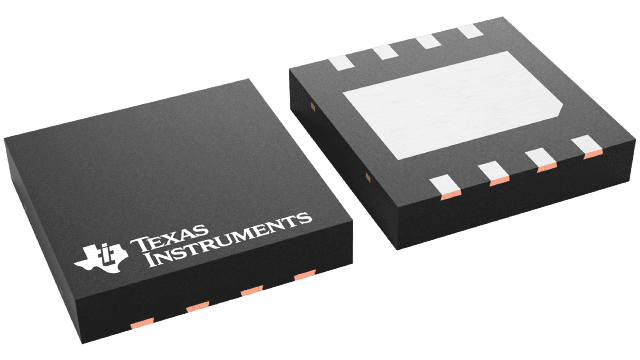

LM34926SDX/NOPB Texas Instruments - Yeehing Electronics

7.5-100V Wide Vin, 300mA Integrated Secondary Bias Regulator for Isolated DC/DC Converters

Pricing (USD)

Quantity	Unit Price
1 — 99	2.155
100 — 249	1.889
250 — 999	1.324
1,000 +	0.75

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Switching Voltage Regulators
RoHS	Y
Mounting Style	SMD/SMT
Package / Case	WSON-8
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 125 C
Series	LM34926
Packaging	Reel
Operating Temperature Range	- 40 C to + 125 C
Type	Voltage Converter
Brand	Texas Instruments
Product Type	Switching Voltage Regulators
Factory Pack Quantity	4500
Subcategory	PMIC - Power Management ICs
Unit Weight	0.000384 oz

For more information, please refer to datasheet

Documents

LM34926SDX/NOPB Datasheet

More Information

The LM34926 regulator features all of the functions needed to implement a low-cost, efficient, isolated bias regulator. This high-voltage regulator contains two 100-V N-channel MOSFET switches — a high-side buck switch and a low-side synchronous switch. The constant on-time (COT) control scheme employed in the LM34926 requires no loop compensation and provides excellent transient response. The regulator operates with an on-time control that is inversely proportional to the input voltage. This feature allows the operating frequency to remain relatively constant. An intelligent peak current limit is implemented with integrated sense circuit. Other features include a programmable input undervoltage comparator to inhibit operation during low-voltage conditions. Protection features include thermal shutdown and VCC Undervoltage Lockout (UVLO). The LM34926 device is offered in WSON-8 and SO PowerPAD-8 plastic packages.
