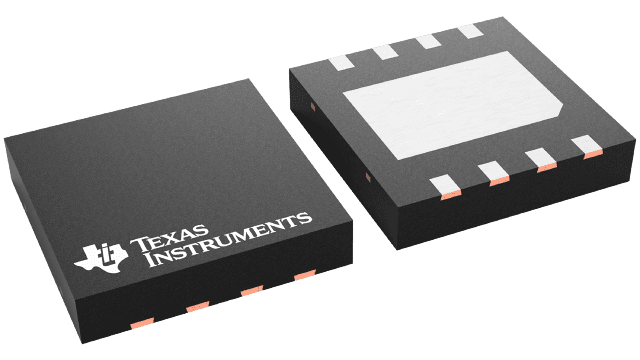

LM34927SDX/NOPB Texas Instruments - Yeehing Electronics
7.5-100V Wide Vin, 600mA Integrated Secondary Bias Regulator for Isolated DC/DC Converters
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 2.333 |
100 — 249 | 2.044 |
250 — 999 | 1.433 |
1,000 + | 2.26 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | Switching Voltage Regulators |
RoHS | Y |
Mounting Style | SMD/SMT |
Package / Case | WSON-8 |
Minimum Operating Temperature | - 40 C |
Maximum Operating Temperature | + 125 C |
Series | LM34927 |
Packaging | Reel |
Operating Temperature Range | - 40 C to + 125 C |
Brand | Texas Instruments |
Product Type | Switching Voltage Regulators |
Factory Pack Quantity | 4500 |
Subcategory | PMIC - Power Management ICs |
Unit Weight | 0.000384 oz |
For more information, please refer to datasheet
Documents
LM34927SDX/NOPB Datasheet |
More Information
The LM34927 regulator features all of the functions needed to implement a low-cost, efficient, isolated bias regulator. This high-voltage regulator contains two 100-V N-channel MOSFET switches — a high-side buck switch and a low-side synchronous switch. The Constant on-time (COT) control scheme employed in the LM34927 device requires no loop compensation and provides excellent transient response. The regulator operates with an on-time that is inversely proportional to the input voltage. This feature allows the operating frequency to remain relatively constant. An intelligent peak current limit is implemented with integrated sense circuit. Other features include a programmable input undervoltage comparator to inhibit operation during low-voltage conditions. Protection features include thermal shutdown and VCC undervoltage lockout (UVLO). The LM34927 device is offered in WSON-8 and SO PowerPAD-8 plastic packages.
