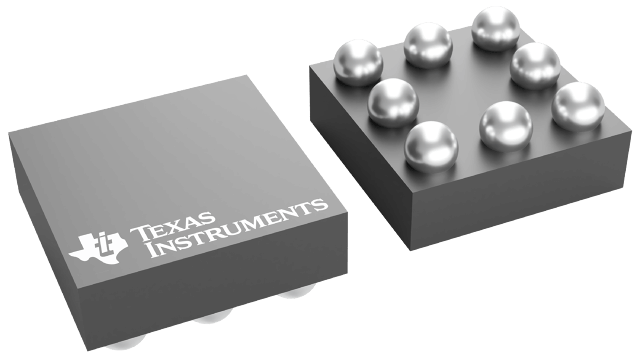

LM3501TL-16/NOPB Texas Instruments - Yeehing Electronics
Synchronous step-up DC/DC converter for white LED applications
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 2.147 |
| 100 — 249 | 1.882 |
| 250 — 999 | 1.319 |
| 1,000 + | 0.61 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Switching Controllers |
| RoHS | Y |
| Topology | Boost |
| Number of Outputs | 1 Output |
| Switching Frequency | 1000 kHz |
| Duty Cycle - Max | 94 % |
| Input Voltage | 7 V |
| Output Voltage | 16 V |
| Output Current | 70 mA |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |
| Package / Case | uSMD |
| Packaging | Reel |
| Description/Function | Fixed-frequency step-up DC/DC converter that is ideal for driving white LEDs |
| Isolation | Isolated |
| Operating Temperature Range | - 40 C to + 85 C |
| Product | Synchronous Step-Up DC/DC Converters |
| Series | LM3501 |
| Type | Step Up |
| Brand | Texas Instruments |
| Shutdown | Shutdown |
| Development Kit | LM3501TL-16EV |
| Operating Supply Current | 300 uA |
| Operating Supply Voltage | 2.7 V to 7 V |
| Product Type | Switching Controllers |
| Factory Pack Quantity | 250 |
| Subcategory | PMIC - Power Management ICs |
| Unit Weight | 0.000138 oz |
For more information, please refer to datasheet
Documents
| LM3501TL-16/NOPB Datasheet |
More Information
The LM3501 is a fixed-frequency step-up DC/DC converter that is ideal for driving white LEDs for display backlighting and other lighting functions. With fully integrated synchronous switching (no external schottky diode required) and a low feedback voltage (515 mV), power efficiency of the LM3501 circuit has been optimized for lighting applications in wireless phones and other portable products (single cell Li-Ion or 3-cell NiMH battery supplies). The LM3501 operates with a fixed 1 MHz switching frequency. When used with ceramic input and output capacitors, the LM3501 provides a small, low-noise, low-cost solution.
