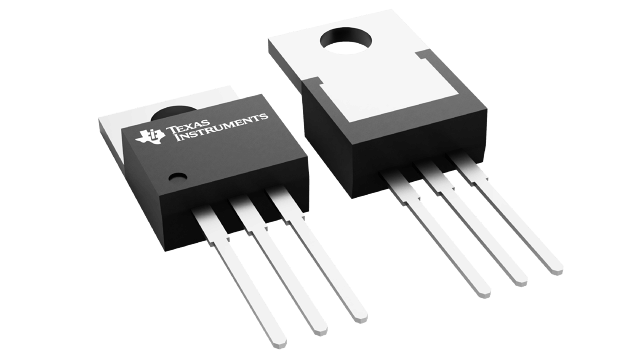

LM350AT/NOPB Texas Instruments - Yeehing Electronics
3-A, 35-V, low-noise, adjustable linear voltage regulator with high-accuracy
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 2.6 |
100 — 249 | 2.278 |
250 — 999 | 1.597 |
1,000 + | 0.90 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | Linear Voltage Regulators |
RoHS | Y |
Mounting Style | Through Hole |
Package / Case | TO-220-3 |
Number of Outputs | 1 Output |
Polarity | Positive |
Output Voltage | 1.2 V to 33 V |
Output Current | 3 A |
Output Type | Adjustable |
Input Voltage MAX | 35 V |
Input Voltage MIN | 4.2 V |
Minimum Operating Temperature | - 40 C |
Maximum Operating Temperature | + 125 C |
Load Regulation | 0.3 % |
Line Regulation | 0.01 %/V |
Series | LM350A |
Packaging | Tube |
Operating Temperature Range | - 40 C to + 125 C |
Brand | Texas Instruments |
PSRR / Ripple Rejection - Typ | 86 dB |
Pd - Power Dissipation | 25 W |
Product Type | Linear Voltage Regulators |
Factory Pack Quantity | 45 |
Subcategory | PMIC - Power Management ICs |
Unit Weight | 0.081130 oz |
For more information, please refer to datasheet
Documents
LM350AT/NOPB Datasheet |
More Information
The LM150 series of adjustable 3-terminal positive voltage regulators is capable of supplying in excess of 3A over a 1.2V to 33V output range. They are exceptionally easy to use and require only 2 external resistors to set the output voltage. Further, both line and load regulation are comparable to discrete designs. Also, the LM150 is packaged in standard transistor packages which are easily mounted and handled.
