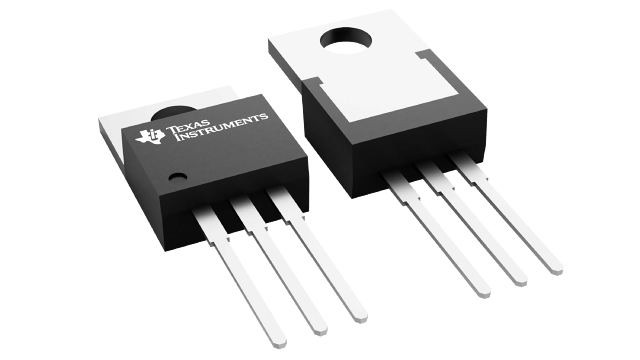

LM350T/NOPB Texas Instruments - Yeehing Electronics

3-A, 35-V, low-noise, adjustable linear voltage regulator

Pricing (USD)

Quantity	Unit Price
1 — 99	1.519
100 — 249	1.254
250 — 999	0.901
1,000 +	0.47

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Linear Voltage Regulators
RoHS	Y
Mounting Style	Through Hole
Package / Case	TO-220-3
Number of Outputs	1 Output
Polarity	Positive
Output Voltage	1.2 V to 33 V
Output Current	3 A
Output Type	Adjustable
Input Voltage MAX	35 V
Input Voltage MIN	4.2 V
Minimum Operating Temperature	0 C
Maximum Operating Temperature	+ 125 C
Load Regulation	0.5 %
Line Regulation	0.03 %/V
Series	LM350-N
Packaging	Tube
Operating Temperature Range	0 C to + 125 C
Brand	Texas Instruments
PSRR / Ripple Rejection - Typ	86 dB
Pd - Power Dissipation	25 W
Product Type	Linear Voltage Regulators
Factory Pack Quantity	45
Subcategory	PMIC - Power Management ICs
Unit Weight	0.081130 oz

For more information, please refer to datasheet

Documents

LM350T/NOPB Datasheet

More Information

The LM150 series of adjustable 3-terminal positive voltage regulators is capable of supplying in excess of 3A over a 1.2V to 33V output range. They are exceptionally easy to use and require only 2 external resistors to set the output voltage. Further, both line and load regulation are comparable to discrete designs. Also, the LM150 is packaged in standard transistor packages which are easily mounted and handled.
