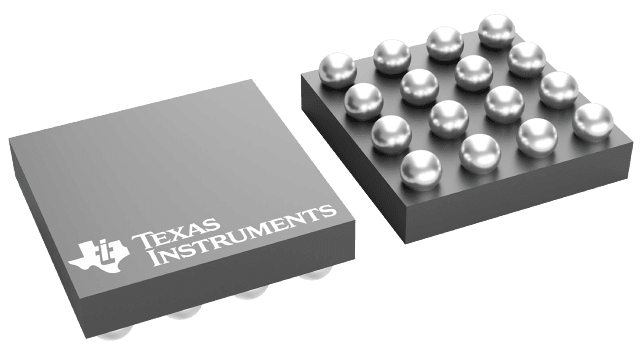

LM3559TLX/NOPB Texas Instruments - Yeehing Electronics

Synchronous boost flash driver with dual 900 mA high side current sources (1.8A Total flash current

Pricing (USD)

Quantity	Unit Price
1 — 99	1.084
100 — 249	0.895
250 — 999	0.643
1,000 +	0.34

The above prices are for reference only.

Specifications

For more information, please refer to datasheet

Documents

LM3559TLX/NOPB Datasheet

More Information

The LM3559 is a 2-MHz fixed-frequency synchronous boost converter with two 900-mA constant current drivers for high-current white LEDs. The dual high-side current sources allow for grounded cathode LED operation and can be tied together for providing flash currents of up to 1.8 A. An adaptive regulation method ensures the current for each LED remains in regulation and maximizes efficiency.
