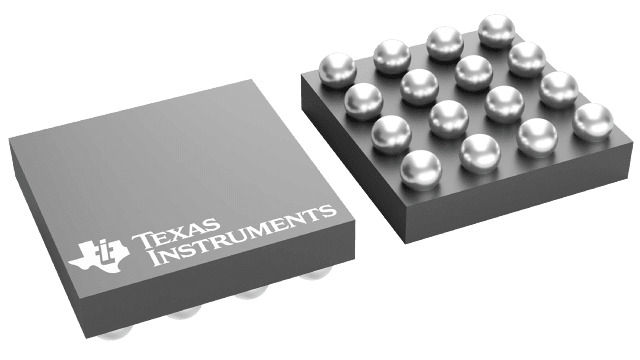

LM3560TLX-20/NOPB Texas Instruments - Yeehing Electronics
Synchronous boost flash driver w/ dual 1A high side current sources (2A Total flash current)
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 1.577 |
| 100 — 249 | 1.302 |
| 250 — 999 | 0.936 |
| 1,000 + | 0.49 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | LED Lighting Drivers |
| RoHS | Y |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Package / Case | DSBGA-16 |
| Series | LM3560 |
| Packaging | Reel |
| Features | I2C Control, Input/Output Isolation, LED Thermal Monitor, Load Disconnect During Shutdown, OVP, Ove |
| Operating Temperature Range | - 40 C to + 85 C |
| Brand | Texas Instruments |
| Product Type | LED Lighting Drivers |
| Factory Pack Quantity | 3000 |
| Subcategory | Driver ICs |
For more information, please refer to datasheet
Documents
| LM3560TLX-20/NOPB Datasheet |
More Information
The LM3560 is a 2-MHz fixed frequency synchronous boost converter with two 1000-mA constant current drivers for high-current white LEDs. The dual high-side current sources allow for grounded cathode LED operation and can be tied together for providing flash currents at up to 2 A through a single LED. An adaptive regulation method ensures the current for each LED remains in regulation and maximizes efficiency.
