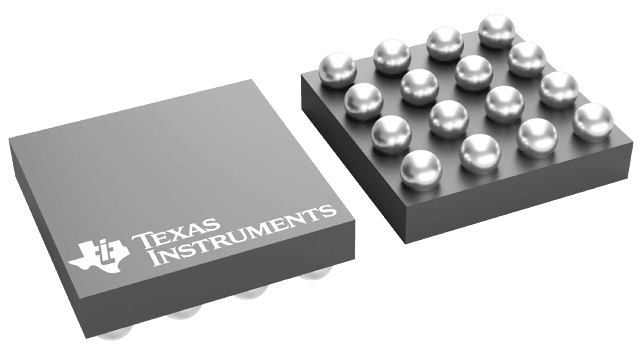

LM3565TLX/NOPB Texas Instruments - Yeehing Electronics

4MHz, high-current flash LED driver

Pricing (USD)

Quantity	Unit Price
1 — 99	0.956
100 — 249	0.735
250 — 999	0.541
1,000 +	0.27

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	LED Lighting Drivers
RoHS	Y
Output Current	930 mA
Input Voltage	2.5 V to 5.5 V
Minimum Operating Temperature	- 30 C
Maximum Operating Temperature	+ 85 C
Package / Case	DSBGA-16
Series	LM3565
Packaging	Reel
Features	LED Thermal Monitor
Operating Temperature Range	- 30 C to + 85 C
Brand	Texas Instruments
Operating Supply Voltage	2.5 V to 5.5 V
Product Type	LED Lighting Drivers
Factory Pack Quantity	3000
Subcategory	Driver ICs
Unit Weight	0.000173 oz

For more information, please refer to datasheet

Documents

LM3565TLX/NOPB Datasheet

More Information

The LM3565 is a 4 MHz fixed-frequency, current mode synchronous boost converter designed to drive two series flash LEDs at 930 mA. A high-voltage current source allows the LEDs to be terminated to the GND plane eliminating the need for an additional return trace back to the IC.
