Texas Instruments

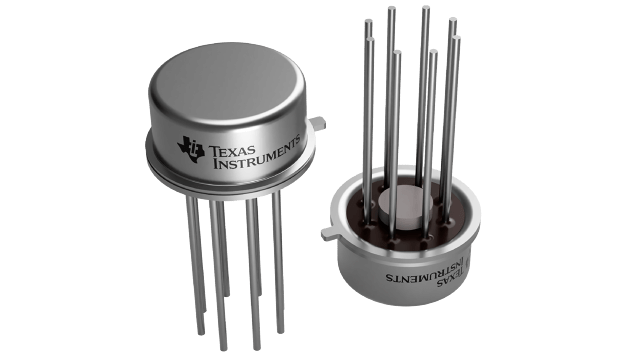

LM358H/NOPB
LM358H/NOPB
Regular price
$2.79 USD
Regular price
Sale price
$2.79 USD
Unit price
per
Couldn't load pickup availability
LM358H/NOPB Texas Instruments - Yeehing Electronics
Dual, 32-V, 1-MHz op amp
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 7.334 |
| 100 — 249 | 5.979 |
| 250 — 999 | 4.699 |
| 1,000 + | 2.79 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Operational Amplifiers - Op Amps |
| RoHS | Y |
| Mounting Style | Through Hole |
| Package / Case | TO-99-8 |
| Supply Voltage - Max | 32 V |
| Output Current per Channel | 30 mA |
| Number of Channels | 2 Channel |
| GBP - Gain Bandwidth Product | 1 MHz |
| SR - Slew Rate | 0.1 V/us |
| CMRR - Common Mode Rejection Ratio | 65 dB to 85 dB |
| Ib - Input Bias Current | 100 nA |
| Vos - Input Offset Voltage | 7 mV |
| Supply Voltage - Min | 3 V |
| Operating Supply Current | 250 uA |
| Minimum Operating Temperature | 0 C |
| Maximum Operating Temperature | + 70 C |
| Shutdown | No Shutdown |
| Series | LM358-N |
| Packaging | Bulk |
| Input Type | Rail-to-Rail |
| Product | Operational Amplifiers |
| Supply Type | Single, Dual |
| Brand | Texas Instruments |
| Minimum Dual Supply Voltage | +/- 1.5 V |
| Operating Supply Voltage | 3 V to 32 V, +/- 1.5 V to +/- 16 V |
| Product Type | Op Amps - Operational Amplifiers |
| Factory Pack Quantity | 500 |
| Subcategory | Amplifier ICs |
For more information, please refer to datasheet
Documents
| LM358H/NOPB Datasheet |
More Information
The LM158 series consists of two independent, high gain, internally frequency compensated operational amplifiers which were designed specifically to operate from a single power supply over a wide range of voltages. Operation from split power supplies is also possible and the low power supply current drain is independent of the magnitude of the power supply voltage.
