Texas Instruments
LM36010YKBR
LM36010YKBR
Regular price
$0.14 USD
Regular price
Sale price
$0.14 USD
Unit price
per
Couldn't load pickup availability

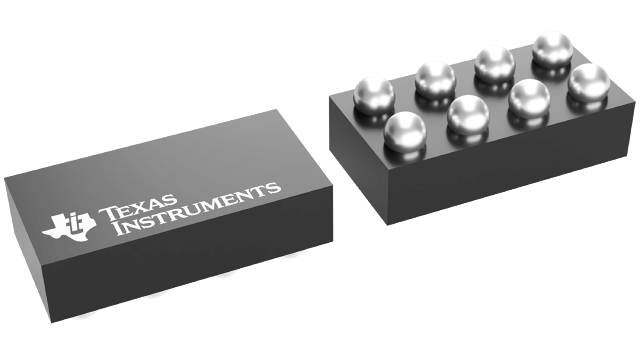

LM36010YKBR Texas Instruments - Yeehing Electronics
LM36010 Synchronous Boost LED flash driver
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 0.494 |
| 100 — 249 | 0.38 |
| 250 — 999 | 0.28 |
| 1,000 + | 0.14 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | LED Lighting Drivers |
| RoHS | Y |
| Number of Channels | 1 Channel |
| Output Current | 1.5 A |
| Input Voltage | 2.5 V to 5.5 V |
| Operating Frequency | 2 MHz, 4 MHz |
| Supply Current - Max | 0.3 mA |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |
| Package / Case | DSBGA-8 |
| Series | LM36010 |
| Packaging | Reel |
| Features | I2C Control, IR Mode, OVP, Synchronous Rectification |
| Operating Temperature Range | - 40 C to + 85 C |
| Product | LED Drivers |
| Type | LED Flash Driver |
| Width | 0.79 mm |
| Brand | Texas Instruments |
| Topology | Boost |
| Development Kit | LM36010EVM |
| Product Type | LED Lighting Drivers |
| Factory Pack Quantity | 3000 |
| Subcategory | Driver ICs |
| Unit Weight | 0.000042 oz |
For more information, please refer to datasheet
Documents
| LM36010YKBR Datasheet |
More Information
The LM36010 is an ultra-small LED flash driver that provides a high level of adjustability. With a total solution size of 7 mm2, it can produce up to 1.5 A of LED flash current or up to 376 mA of torch current.
