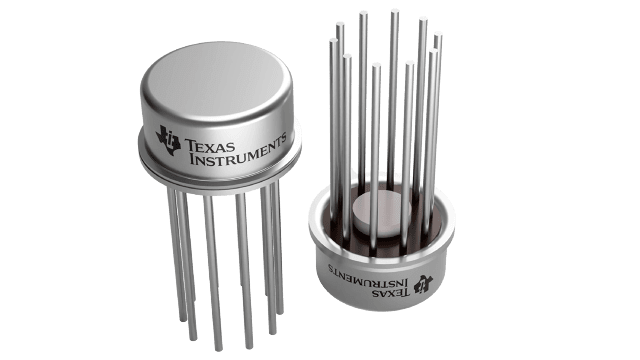

LM361H/NOPB Texas Instruments - Yeehing Electronics

140-ns, differential comparator with strobe

Pricing (USD)

Quantity	Unit Price
1 — 99	7.772
100 — 249	6.336
250 — 999	4.98
1,000 +	2.96

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Analog Comparators
RoHS	Y
Mounting Style	Through Hole
Package / Case	TO-100-10
Comparator Type	Differential
Number of Channels	1 Channel
Output Type	Differential
Ib - Input Bias Current	30 uA
Vos - Input Offset Voltage	1 mV
Supply Voltage - Max	32 V
Supply Voltage - Min	11 V
Operating Supply Current	20 mA
Response Time	140 ns
Minimum Operating Temperature	0 C
Maximum Operating Temperature	+ 70 C
Packaging	Bulk
Features	Strobe
Product	Analog Comparators
Series	LM361
Brand	Texas Instruments
GBP - Gain Bandwidth Product	-
Operating Supply Voltage	11 V to 32 V
Product Type	Analog Comparators
Factory Pack Quantity	500
Subcategory	Amplifier ICs
Vcm - Common Mode Voltage	9 V
Unit Weight	0.014110 oz

For more information, please refer to datasheet

Documents

LM361H/NOPB Datasheet

More Information

The LM161/LM361 is a very high speed differential input, complementary TTL output voltage comparator with improved characteristics over the SE529/NE529 for which it is a pin-for-pin replacement. The device has been optimized for greater speed performance and lower input offset voltage. Typically delay varies only 3 ns for over-drive variations of 5 mV to 500 mV. It may be operated from op amp supplies (±15V).
