Texas Instruments
LM36272YFFR
LM36272YFFR
Regular price
$0.58 USD
Regular price
Sale price
$0.58 USD
Unit price
per
Couldn't load pickup availability

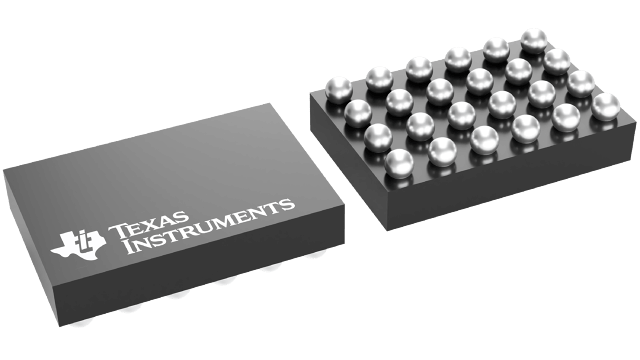

LM36272YFFR Texas Instruments - Yeehing Electronics
Two-channel LCD backlight and Bias power
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 1.681 |
| 100 — 249 | 1.473 |
| 250 — 999 | 1.033 |
| 1,000 + | 0.58 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | LED Lighting Drivers |
| RoHS | Y |
| Number of Channels | 2 Channel |
| Input Voltage | 5 V |
| Operating Frequency | 1.05 MHz |
| Supply Current - Max | 30 mA |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |
| Package / Case | DSBGA-24 |
| Series | LM36272 |
| Packaging | Reel |
| Features | Adjustable Switch Frequency, CABC, Direct PWM Dimming, I2C Control, OVP, Thermal Shutdown |
| Operating Temperature Range | - 40 C to + 85 C |
| Output Voltage | 30 V |
| Type | Backlight LED Driver |
| Brand | Texas Instruments |
| Topology | Boost |
| Product Type | LED Lighting Drivers |
| Factory Pack Quantity | 3000 |
| Subcategory | Driver ICs |
| Unit Weight | 0.000169 oz |
For more information, please refer to datasheet
Documents
| LM36272YFFR Datasheet |
More Information
The LM36272 is an integrated two-channel WLED driver and LCD bias supply. The ultra-compact size, high efficiency, high level of integration, and programmability allow the LM36272 to address a variety of applications without the need for hardware changes while minimizing the overall solution area.
