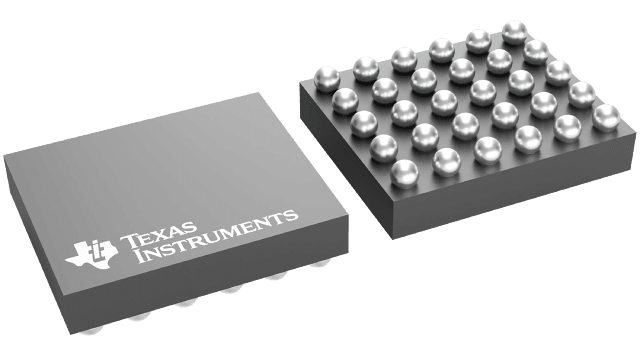

LM3632AYFFR Texas Instruments - Yeehing Electronics

Single-chip backlight with Bias power and 1.5-A flash LED driver

Pricing (USD)

Quantity	Unit Price
1 — 99	1.681
100 — 249	1.473
250 — 999	1.033
1,000 +	0.58

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	LED Lighting Drivers
RoHS	Y
Number of Channels	2 Channel
Output Current	25 mA
Input Voltage	2.7 V to 5 V
Operating Frequency	500 kHz, 1 MHz
Supply Current - Max	10 uA
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Mounting Style	SMD/SMT
Package / Case	DSBGA-30
Series	LM3632A
Packaging	Reel
Features	Adjustable Switch Frequency, CABC, Direct PWM Dimming, Enable/Shutdown, I2C Control, Integrated Swi
Operating Temperature Range	- 40 C to + 85 C
Output Type	Constant Current
Product	LED Drivers
Type	Single-Chip Backlight with Bias Power
Width	2.07 mm
Brand	Texas Instruments
Topology	Boost
Product Type	LED Lighting Drivers
Factory Pack Quantity	3000
Subcategory	Driver ICs
Unit Weight	0.000212 oz

For more information, please refer to datasheet

Documents

LM3632AYFFR Datasheet

More Information

The LM3632A integrates the WLED drivers for both the backlight of the LCD panel and the camera flash along with the bias power for the LCD panel into one device. The device has all the safety features required in LED drivers with up to 90% efficiency and bias positive/negative power rails achieving 1.5% accuracy. Capable of driving up to 16 backlight LEDs, the device is ideal for small- to medium-size displays. A 1.5-A constant-current LED driver powered by a synchronous boost converter can be used for flash applications. The high-side flash current source allows for grounded cathode LED operation.
