Texas Instruments

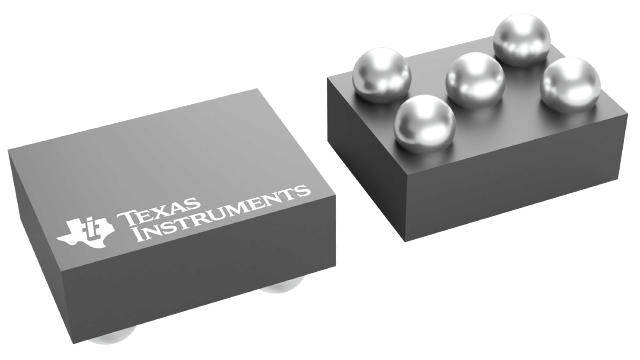

LM3673TL-1.8/NOPB
LM3673TL-1.8/NOPB
Regular price
$0.33 USD
Regular price
Sale price
$0.33 USD
Unit price
per
Couldn't load pickup availability
LM3673TL-1.8/NOPB Texas Instruments - Yeehing Electronics
2MHz, 350mA Step-Down DC-DC Converter
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 1.066 |
| 100 — 249 | 0.881 |
| 250 — 999 | 0.633 |
| 1,000 + | 0.33 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Switching Voltage Regulators |
| RoHS | Y |
| Mounting Style | SMD/SMT |
| Package / Case | DSBGA-5 |
| Output Voltage | 1.8 V |
| Output Current | 350 mA |
| Number of Outputs | 1 Output |
| Input Voltage MAX | 5.5 V |
| Topology | Buck |
| Input Voltage MIN | 2.7 V |
| Switching Frequency | 2000 kHz |
| Minimum Operating Temperature | - 30 C |
| Maximum Operating Temperature | + 85 C |
| Series | LM3673 |
| Packaging | Reel |
| Input Voltage | 5.5 V |
| Operating Temperature Range | - 30 C to + 85 C |
| Type | Step Down |
| Brand | Texas Instruments |
| Shutdown | Shutdown |
| Load Regulation | 0.0015 %/mA |
| Operating Supply Current | 1.6 mA |
| Product Type | Switching Voltage Regulators |
| Factory Pack Quantity | 250 |
| Subcategory | PMIC - Power Management ICs |
| Supply Voltage - Min | 2.7 V |
| Unit Weight | 0.000056 oz |
For more information, please refer to datasheet
Documents
| LM3673TL-1.8/NOPB Datasheet |
More Information
The LM3673 step-down DC-DC converter is optimized for powering low voltage circuits from a single Li-Ion cell battery and input voltage rails from 2.7 V to 5.5 V. It provides up to 350-mA load current over the entire input voltage range. There are several different fixed voltage output options available, as well as an adjustable output voltage version ranging from 1.1 V to 3.3 V.
