Texas Instruments
LM3677TL-ADJ/NOPB
LM3677TL-ADJ/NOPB
Regular price
$0.37 USD
Regular price
Sale price
$0.37 USD
Unit price
per
Couldn't load pickup availability

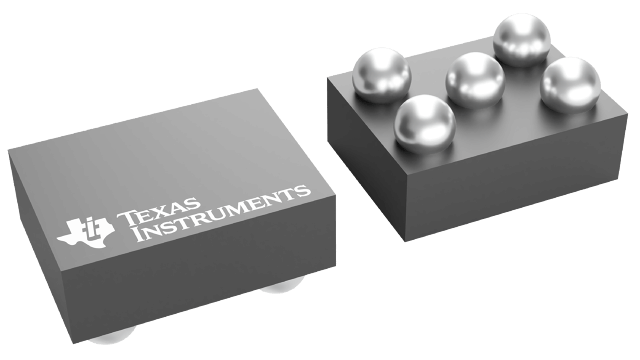

LM3677TL-ADJ/NOPB Texas Instruments - Yeehing Electronics
3MHz, 600mA Miniature Step-Down DC-DC Converter for Ultra Low Voltage Circuits
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 1.198 |
| 100 — 249 | 0.99 |
| 250 — 999 | 0.711 |
| 1,000 + | 0.37 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Switching Voltage Regulators |
| RoHS | Y |
| Mounting Style | SMD/SMT |
| Package / Case | DSBGA-5 |
| Output Voltage | 1.2 V to 3.3 V |
| Output Current | 600 mA |
| Number of Outputs | 1 Output |
| Input Voltage MAX | 5.5 V |
| Topology | Buck |
| Input Voltage MIN | 2.7 V |
| Switching Frequency | 3000 kHz |
| Minimum Operating Temperature | - 30 C |
| Maximum Operating Temperature | + 85 C |
| Series | LM3677 |
| Packaging | Reel |
| Input Voltage | 5.5 V |
| Operating Temperature Range | - 30 C to + 85 C |
| Type | Step Down |
| Brand | Texas Instruments |
| Shutdown | Shutdown |
| Operating Supply Current | 5 mA |
| Product Type | Switching Voltage Regulators |
| Factory Pack Quantity | 250 |
| Subcategory | PMIC - Power Management ICs |
| Supply Voltage - Min | 2.7 V |
| Unit Weight | 0.000056 oz |
For more information, please refer to datasheet
Documents
| LM3677TL-ADJ/NOPB Datasheet |
More Information
The LM3677 step-down DC-DC converter is optimized for powering ultra-low voltage circuits from a single Li-Ion cell battery and input voltage rails from 2.7V to 5.5V. It provides up to 600 mA load current over the entire input voltage range. The LM3677 is configured to different fixed voltage output options as well as an adjustable output voltage version range from 1.2V to 3.3V.
