Texas Instruments

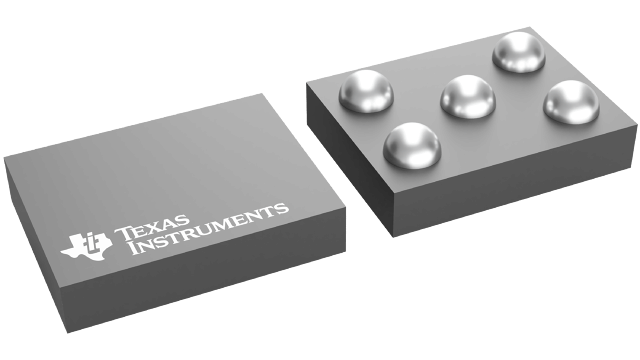

LM3679UR-1.8/NOPB
LM3679UR-1.8/NOPB
Regular price
$0.32 USD
Regular price
Sale price
$0.32 USD
Unit price
per
Couldn't load pickup availability
LM3679UR-1.8/NOPB Texas Instruments - Yeehing Electronics
3MHz, 350mA Miniature Step-Down DC-DC Converter for Ultra Low Profile Applications
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 1.116 |
| 100 — 249 | 0.859 |
| 250 — 999 | 0.632 |
| 1,000 + | 0.32 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Minimum Operating Temperature | -30 |
| Maximum Operating Temperature | 85 |
| Factory Pack Quantity | 250 |
| Package | Pins | DSBGA (YPD) | 5 |
For more information, please refer to datasheet
Documents
| LM3679UR-1.8/NOPB Datasheet |
More Information
The LM3679 step-down DC-DC converter is optimized for powering ultra-low voltage circuits from a single Li-Ion cell battery and input voltage rails from 2.5V to 5.5V. It provides up to 350mA load current, over the entire input voltage range. The LM3679 output voltage can be configured to 1.2V, 1.5V, or 1.8V.
