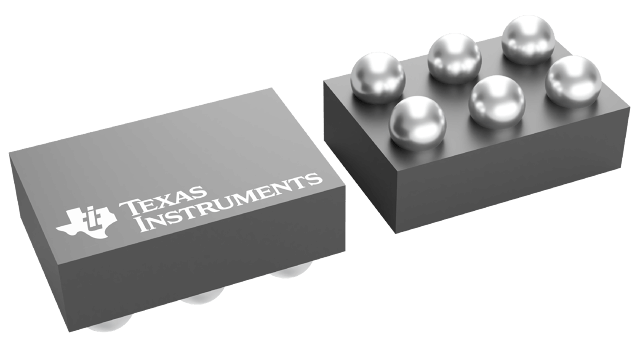

LM3691TLX-1.2/NOPB


YeeHing #: Y012-LM3691TLX-1.2/NOPB
Inventory: 6600

Feel free to reach out to us for more information.
Click the button below to unveil exclusive discounts and delightful surprises.

Description

LM3691TLX-1.2/NOPB Texas Instruments - Yeehing Electronics

High Accuracy, Miniature 1A, Step-Down DC-DC Converter for Portable Applications

Pricing (USD)

Quantity Unit Price
1 — 99 1.41
100 — 249 1.085
250 — 999 0.799
1,000 + 0.40

The above prices are for reference only.

Specifications

Manufacturer Texas Instruments
Product Category Switching Voltage Regulators
RoHS Y
Mounting Style SMD/SMT
Package / Case DSBGA-6
Output Voltage 1.2 V
Output Current 1 A
Number of Outputs 1 Output
Input Voltage MAX 5.5 V
Topology Buck
Input Voltage MIN 2.3 V
Switching Frequency 4000 kHz
Minimum Operating Temperature - 30 C
Maximum Operating Temperature + 85 C
Series LM3691
Packaging Reel
Input Voltage 5.5 V
Operating Temperature Range - 30 C to + 85 C
Type Step Down
Brand Texas Instruments
Operating Supply Current 64 uA
Product Type Switching Voltage Regulators
Factory Pack Quantity 3000
Subcategory PMIC - Power Management ICs
Unit Weight 0.000060 oz

For more information, please refer to datasheet

Documents

LM3691TLX-1.2/NOPB Datasheet

More Information

The LM3691 step-down DC-DC converter is optimized for powering ultra-low-voltage circuits from a single Li-Ion cell or 3 cell NiMH/NiCd batteries. It provides up to 1-A load current over an input voltage range from 2.3 V to 5.5 V. There are several different fixed voltage output options available.
