Description

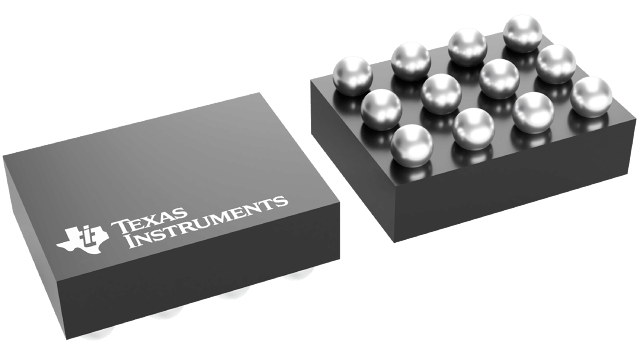

LM36923HYFFR Texas Instruments - Yeehing Electronics
Highly efficient Triple-String white LED driver
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 1.141 |
| 100 — 249 | 0.878 |
| 250 — 999 | 0.646 |
| 1,000 + | 0.27 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | LED Lighting Drivers |
| RoHS | Y |
| Number of Channels | 3 Channel |
| Output Current | 25 mA |
| Input Voltage | 2.5 V to 5.5 V |
| Operating Frequency | 500 kHz/1 MHz |
| Supply Current - Max | 5 uA |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |
| Package / Case | DSBGA-12 |
| Series | LM36923H |
| Packaging | Reel |
| Features | Adjustable Switch Frequency, CABC, Direct PWM Dimming, Enable/Shutdown, I2C Control, OVP, Thermal S |
| Operating Temperature Range | - 40 C to + 85 C |
| Product | LED Drivers |
| Type | Inductive |
| Brand | Texas Instruments |
| Topology | Boost |
| Product Type | LED Lighting Drivers |
| Factory Pack Quantity | 3000 |
| Subcategory | Driver ICs |
| Unit Weight | 0.000095 oz |
For more information, please refer to datasheet
Documents
| LM36923HYFFR Datasheet |
More Information
The LM36923H is an ultra-compact, highly efficient, three-string white-LED driver designed for LCD display backlighting. The device can power up to 12 series LEDs at up to 25 mA per string. An adaptive current regulation method allows for different LED voltages in each string while maintaining current regulation.
