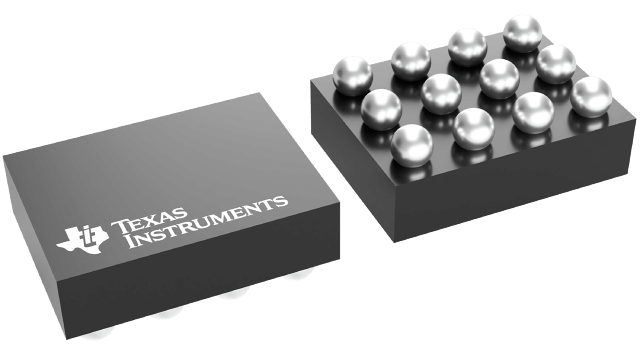

LM36923YFFR Texas Instruments - Yeehing Electronics

High efficiency, Triple-String, 30-V Synchronous white LED driver

Pricing (USD)

Quantity	Unit Price
1 — 99	0.771
100 — 249	0.593
250 — 999	0.436
1,000 +	0.22

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	LED Lighting Drivers
RoHS	Y
Number of Channels	3 Channel
Output Current	25 mA
Input Voltage	2.5 V to 5.5 V
Operating Frequency	500 kHz, 1 MHz
Supply Current - Max	5 uA
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Mounting Style	SMD/SMT
Package / Case	DSBGA-12
Series	LM36923
Packaging	Reel
Features	Adjustable Switch Frequency, CABC, Direct PWM Dimming, Enable/Shutdown, I2C Control, OVP, PWM Contr
Height	0.625 mm
Length	1.756 mm
Operating Temperature Range	- 40 C to + 85 C
Product	LED Drivers
Type	Inductive
Width	1.355 mm
Brand	Texas Instruments
Topology	Boost
Product Type	LED Lighting Drivers
Factory Pack Quantity	3000
Subcategory	Driver ICs
Unit Weight	0.001270 oz

For more information, please refer to datasheet

Documents

LM36923YFFR Datasheet

More Information

The LM36923 is an ultra-compact, highly efficient, threestring white-LED driver designed for LCD display backlighting. The device can power up to 8 series LEDs at up to 25 mA per string. An adaptive current regulation method allows for different LED voltages in each string while maintaining current regulation.
