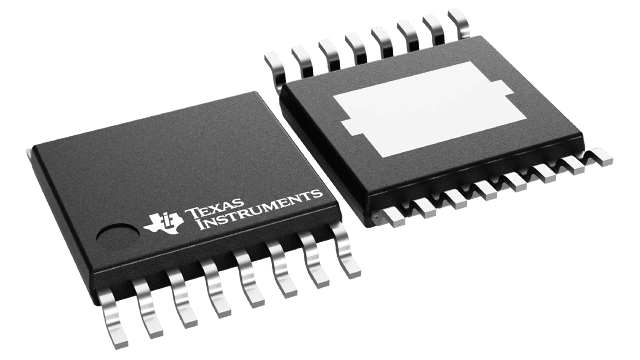

LM43600PWP Texas Instruments - Yeehing Electronics

3.5V to 36V, 500mA Synchronous Step-Down Voltage Converter

Pricing (USD)

Quantity	Unit Price
1 — 99	3.519
100 — 249	3.083
250 — 999	2.162
1,000 +	1.22

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Switching Voltage Regulators
RoHS	Y
Mounting Style	SMD/SMT
Package / Case	HTSSOP-16
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 125 C
Series	LM43600
Packaging	Reel
Height	1.2 mm
Length	5 mm
Operating Temperature Range	- 40 C to + 125 C
Width	4.4 mm
Brand	Texas Instruments
Moisture Sensitive	Yes
Operating Supply Current	33 uA
Product Type	Switching Voltage Regulators
Factory Pack Quantity	2000
Subcategory	PMIC - Power Management ICs
Unit Weight	0.002212 oz

For more information, please refer to datasheet

Documents

LM43600PWP Datasheet

More Information

The LM43600 regulator is an easy-to-use synchronous step-down DC-DC converter capable of driving up to 0.5 A of load current from an input voltage ranging from 3.5 V to 36 V (42 V transient). The LM43600 provides exceptional efficiency, output accuracy and drop-out voltage in a very small solution size. An extended family is available in 1-A, 2-A and 3-A load current options in pin-to-pin compatible packages. Peak current mode control is employed to achieve simple control loop compensation and cycle-by-cycle current limiting. Optional features such as programmable switching frequency, synchronization, power-good flag, precision enable, internal soft start, extendable soft start, and tracking provide a flexible and easy-to-use platform for a wide range of applications. Discontinuous conduction and automatic frequency modulation at light loads improve light load efficiency. The family requires few external components and pin arrangement allows simple, optimum PCB layout. Protection features include thermal shutdown, VCC undervoltage lockout, cycle-by-cycle current limit, and output short-circuit protection. The LM43600 device is available in the 16-pin HTSSOP (PWP) leaded package (6.6 mm × 5.1 mm × 1.2 mm) with 0.65-mm lead pitch. Pin-to-pin compatible with LM46000, LM46001, LM46002, LM43601, LM43602, and LM43603 devices.
