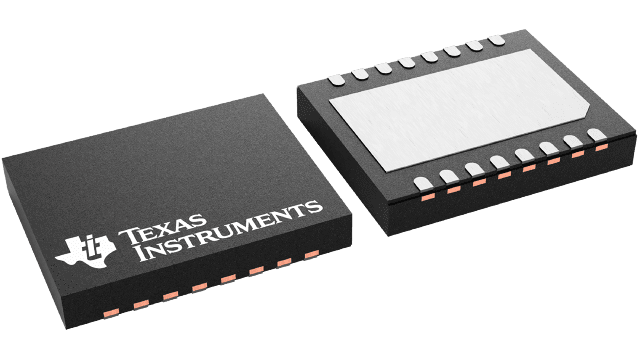

LM43603DSUR Texas Instruments - Yeehing Electronics
3.5V to 36V, 3A Synchronous Step-Down Voltage Converter
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 3.979 |
100 — 249 | 3.487 |
250 — 999 | 2.445 |
1,000 + | 1.38 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | Switching Voltage Regulators |
RoHS | Y |
Mounting Style | SMD/SMT |
Package / Case | SON-16 |
Output Voltage | 1 V to 28 V |
Output Current | 3 A |
Number of Outputs | 1 Output |
Input Voltage MAX | 36 V |
Topology | Buck |
Input Voltage MIN | 3.5 V |
Switching Frequency | 200 kHz to 2.2 MHz |
Minimum Operating Temperature | - 40 C |
Maximum Operating Temperature | + 125 C |
Series | LM43603 |
Packaging | Reel |
Input Voltage | 3.5 V to 36 V |
Operating Temperature Range | - 40 C to + 125 C |
Quiescent Current | 27 uA |
Type | Synchronous Step Down Voltage Converter |
Brand | Texas Instruments |
Shutdown | Shutdown |
Moisture Sensitive | Yes |
Operating Supply Current | 27 uA |
Product Type | Switching Voltage Regulators |
Factory Pack Quantity | 3000 |
Subcategory | PMIC - Power Management ICs |
Supply Voltage - Min | 3.5 V |
Tradename | SIMPLE SWITCHER |
For more information, please refer to datasheet
Documents
LM43603DSUR Datasheet |
More Information
The LM43603 regulator is an easy-to-use synchronous step-down DC-DC converter capable of driving up to 3 A of load current from an input voltage ranging from 3.5 V to 36 V (42 V abs max). The LM43603 provides exceptional efficiency, output accuracy and dropout voltage in a very small solution size. An extended family is available in 0.5-A, 1-A, and 2-A load current options in pin to pin compatible packages. Peak current mode control is employed to achieve simple control loop compensation and cycle-by-cycle current limiting. Optional features such as programmable switching frequency, synchronization, power-good flag, precision enable, internal soft-start, extendable soft-start, and tracking provide a flexible and easy to use platform for a wide range of applications. Discontinuous conduction and automatic frequency modulation at light loads improve light load efficiency. The family requires few external components and pin arrangement allows simple, optimum PCB layout. Protection features include thermal shutdown, VCC undervoltage lockout, cycle-by-cycle current limit, and output short circuit protection. The LM43603 device is available in the HTSSOP / PWP 16 leaded package (5.1 mm × 6.6 mm × 1.2 mm) and VSON-16 package with wettable flanks. HTSSOP package is pin-to-pin compatible with LM43600, LM43601, LM43602, LM46000, LM46001, LM46002. VSON-16 package is only pin-to-pin compatible with LM43602.
