LM4510SD/NOPB Texas Instruments - Yeehing Electronics

Synchronous Step-Up DC/DC Converter with True Shutdown Isolation

Pricing (USD)

Quantity	Unit Price
1 — 99	1.438
100 — 249	1.106
250 — 999	0.814
1,000 +	0.33

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Switching Voltage Regulators
RoHS	Y
Mounting Style	SMD/SMT

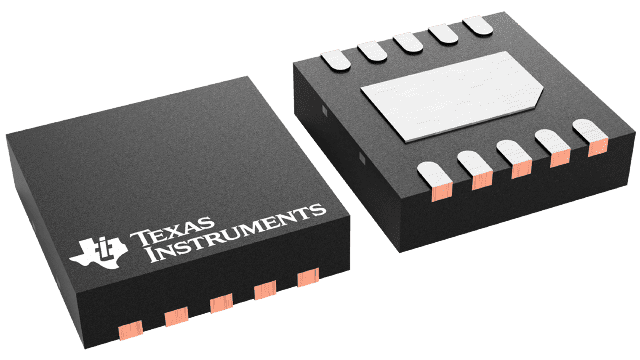

Package / Case	WSON-10
Output Voltage	18 V
Output Current	1.2 A
Number of Outputs	1 Output
Input Voltage MAX	5.5 V
Topology	Boost
Input Voltage MIN	2.7 V
Switching Frequency	1000 kHz
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Series	LM4510
Packaging	Reel
Input Voltage	5.5 V
Operating Temperature Range	- 40 C to + 85 C
Type	Step Up
Brand	Texas Instruments
Shutdown	Shutdown
Development Kit	LM4510SDEV
Operating Supply Current	1.7 mA
Pd - Power Dissipation	1.4 W
Product Type	Switching Voltage Regulators
Factory Pack Quantity	1000
Subcategory	PMIC - Power Management ICs
Supply Voltage - Min	2.7 V
Unit Weight	0.000624 oz

For more information, please refer to datasheet

Documents

LM4510SD/NOPB Datasheet

More Information

The LM4510 is a current mode step-up DC/DC converter with a 1.2-A internal NMOS switch designed to deliver up to 120 mA at 16 V from a Li-Ion battery.
