Texas Instruments

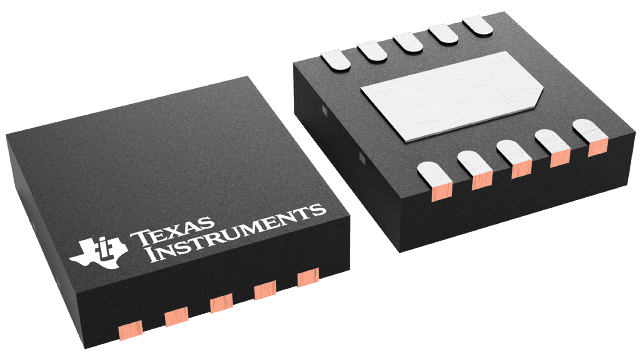

LM4510SDX/NOPB
LM4510SDX/NOPB
Regular price
$0.34 USD
Regular price
Sale price
$0.34 USD
Unit price
per
Couldn't load pickup availability
LM4510SDX/NOPB Texas Instruments - Yeehing Electronics
Synchronous Step-Up DC/DC Converter with True Shutdown Isolation
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 1.198 |
| 100 — 249 | 0.922 |
| 250 — 999 | 0.679 |
| 1,000 + | 0.34 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Switching Voltage Regulators |
| RoHS | Y |
| Mounting Style | SMD/SMT |
| Package / Case | WSON-10 |
| Output Voltage | 18 V |
| Output Current | 1.2 A |
| Number of Outputs | 1 Output |
| Input Voltage MAX | 5.5 V |
| Topology | Boost |
| Input Voltage MIN | 2.7 V |
| Switching Frequency | 1000 kHz |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Series | LM4510 |
| Packaging | Reel |
| Input Voltage | 5.5 V |
| Operating Temperature Range | - 40 C to + 85 C |
| Type | Step Up |
| Brand | Texas Instruments |
| Development Kit | LM4510SDEV |
| Operating Supply Current | 1.7 mA |
| Pd - Power Dissipation | 1.4 W |
| Product Type | Switching Voltage Regulators |
| Factory Pack Quantity | 4500 |
| Subcategory | PMIC - Power Management ICs |
For more information, please refer to datasheet
Documents
| LM4510SDX/NOPB Datasheet |
More Information
The LM4510 is a current mode step-up DC/DC converter with a 1.2-A internal NMOS switch designed to deliver up to 120 mA at 16 V from a Li-Ion battery.
